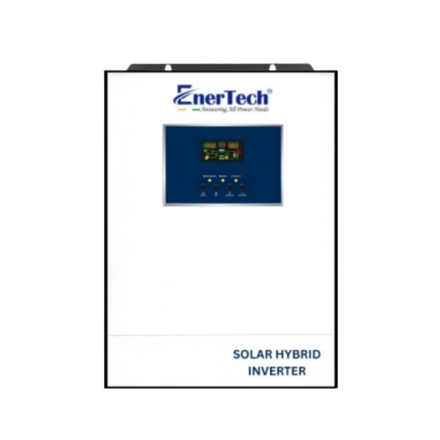

3kW-4kW 24VDC HF Hybrid Inverter

3kW-4kW 24VDC HF Hybrid Inverter – a compact wall-mounted high-frequency solar hybrid inverter that balances solar, grid and battery power. Grid-tied, off-grid and batteryless modes, integrated MPPT with up to 500 V DC PV input, 120% solar overloading and lithium battery auto-restart.

Easy Payment

Free Delivery

Genuine Products

Warranty Assurance

Factory-Direct Delivery

Certified Excellence

Product Overview

The 3kW-4kW 24VDC HF Hybrid Inverter is a compact, wall-mounted high-frequency solar hybrid inverter that balances solar, grid and battery power. It supports grid-tied, off-grid and batteryless operation, lithium battery auto-restart and 120% solar overloading, in a footprint about 70% smaller than conventional inverters.

Key Features

  • Compact wall-mounted HF design, ~70% smaller footprint
  • Grid-tied, off-grid and batteryless modes
  • Integrated MPPT with up to 500 V DC PV input
  • 120% solar panel overloading
  • Lithium battery auto-restart and BMS support
  • Built-in fuse switch for installation safety
  • Silent operation (≤50 dB)

Specifications

Rated Capacity3–4 kW
PhaseSingle Phase
Nominal AC Input Voltage Range90V–280V AC ± 3V (Normal Mode) / 170V–280V AC (UPS Mode)
Input Frequency Synchronization Range50/60 Hz (Adaptive / Auto-sensing)
Maximum PV Input Voltage (VOC)500V DC
MPPT Operating Voltage Range60V–500V DC (3 kW–6 kW) / 90V–500V DC (8 kW–10 kW)
Maximum PV Input Power5000 W (3 kW–4 kW) / 7500 W (5 kW–6 kW) / 2 × 5500 W (8 kW–10 kW)
Nominal AC Output Voltage and Regulation208V / 220V / 230V / 240V AC ± 5%
Output Frequency50/60 Hz ± 0.1%
Transfer / Changeover Time (AC to DC)10 ms (Computer Equipment) / 20 ms (Household Equipment)
Peak Inverter Efficiency> 94% (Battery Mode, 3 kW–4 kW) / 98% (5 kW–10 kW)
Operating Temperature Range-10°C to 50°C (3 kW–4 kW) / -15°C to 60°C (5 kW–10 kW)
Acoustic Operating Noise Level≤ 50 dB

Applications

Homes, small offices and shops.
