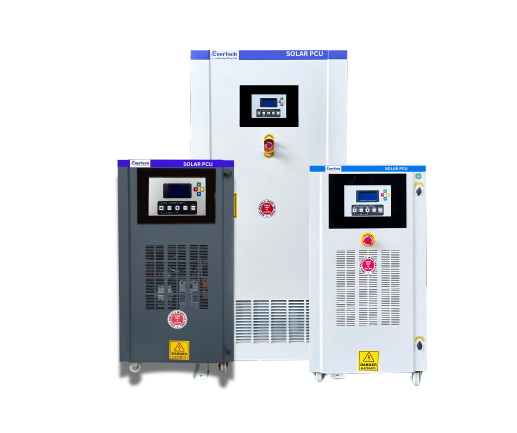

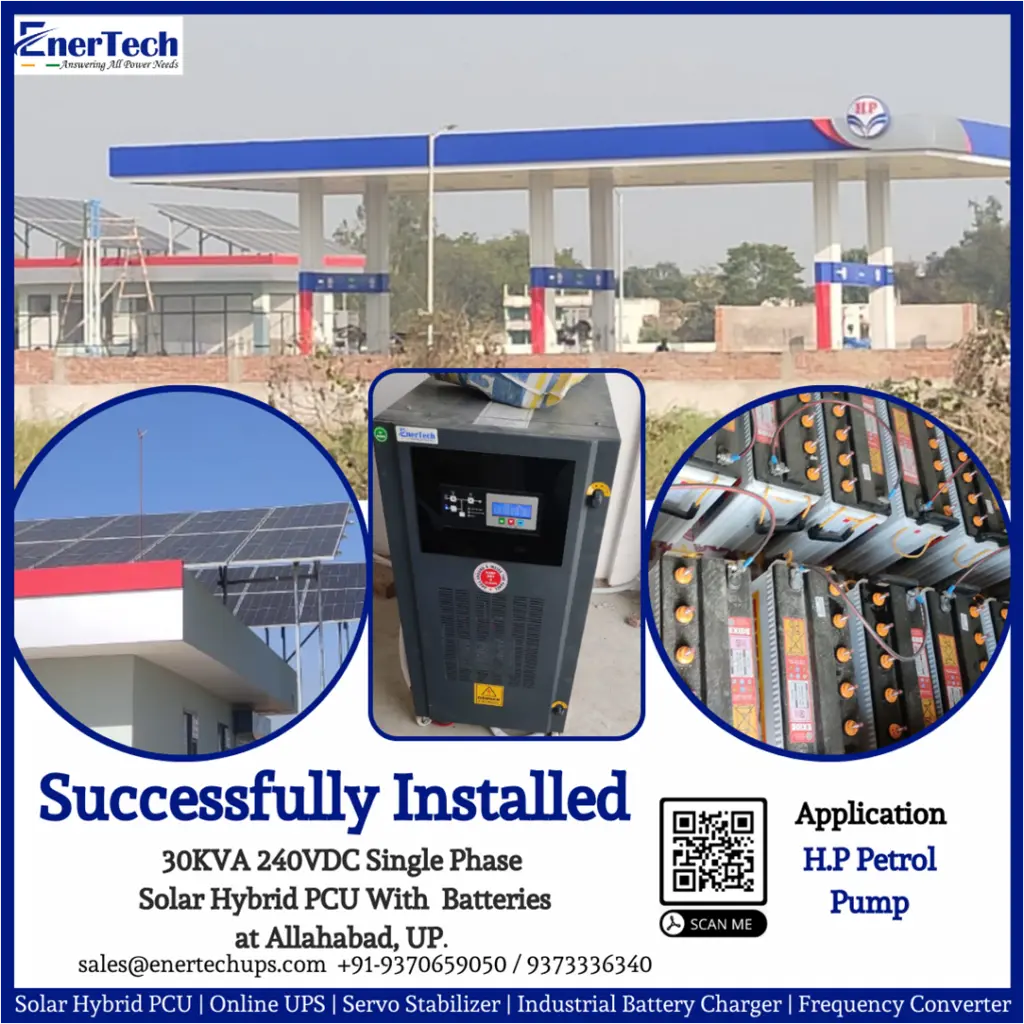

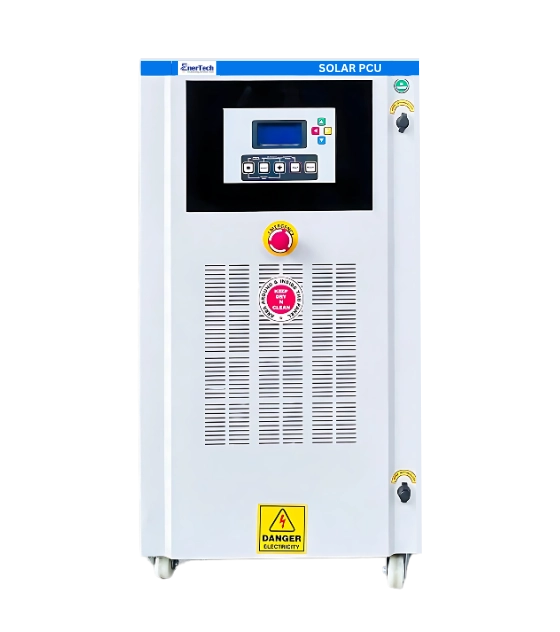

Solar Hybrid Inverter 1Ph: SunMagic

Range 5KVA to 30KVA
Phase 1 Phase
Display 32 bit DSP based design
Mode Multi modes working SBG/SGB/Export/Batteryless
Power Factor IGBT rectifier with PF >0.9
Design Customized MPPT design
Indication Interactive front LCD to do all settings via display
Control MODBUS control for handshaking
Monitoring Remote monitoring using GSM/RS-485

Description

EnerTech SunMagic is a state of art PCU product from the EnerTech product basket with Global standards. This unit will give operational flexibility to its customers to enjoy the benefits of advanced monitoring and control features. EnerTech is a solar inverter manufacturer in India and solar inverter supplier. We are the leading Manufacturer and Supplier of Solar Hybrid Inverter that started to range from 5KVA to 30KVA.EnerTech single-phase solar hybrid inverters are advanced inverters designed to convert DC power generated by solar panels into AC power for use in residential and small commercial applications. These inverters combine the functions of a solar inverter, battery charger, and grid-tie inverter in a single unit, making them highly efficient and cost-effective solutions for powering homes and small businesses.

Some of the key features of EnerTech single-phase solar hybrid inverters include:

High Efficiency: EnerTech single-phase solar hybrid inverters are built with advanced technology and high-quality components that ensure maximum conversion efficiency of DC power generated by solar panels to AC power for use in residential and small commercial applications.

Battery Compatibility: EnerTech single-phase solar hybrid inverters are compatible with various types of batteries, including lead-acid, lithium-ion, and other battery types, which makes them suitable for use in different applications.

Batteryless Mode: EnerTech single-phase solar hybrid inverters can operate both in Battery and battery-less modes, which provides flexibility in system configuration and operation.

Multiple Operating Modes: EnerTech single-phase solar hybrid inverters come with multiple operating modes, including grid-tied mode, battery backup mode, and hybrid mode, which allows the system to operate in different configurations based on the user’s requirements.

Grid-Connected and Grid-Less Operation: EnerTech single-phase solar hybrid inverters can operate both in grid-connected and grid-less modes, which provides flexibility in system configuration and operation.

Remote Monitoring and Control: The inverter can be remotely monitored and controlled using a mobile app or a computer, which makes it easy to manage and monitor the performance of the system.

MPPT Input: The inverter comes with MPPT input, which allows for maximum power harvesting from solar panels, even in complex shading situations.

Overload and Short Circuit Protection: EnerTech single-phase solar hybrid inverters are designed with overload and short circuit protection, which helps prevent damage to the inverter and other connected devices in the event of a power overload or short circuit.

LCD Display: The inverter comes with an LCD display that provides real-time information on system performance, which makes it easy to monitor and manage the system.

EnerTech single-phase solar hybrid inverters are advanced and reliable solutions that provide efficient and cost-effective power for residential and small commercial applications. They come with a wide range of features that make them suitable for various applications, and they are built with high-quality components that ensure maximum performance and durability.

Features

  • Bidirectional solar PCU
  • Hybrid inverter (Solar / Grid / BATT)
  • Vector Modulated Inverter Control
  • Multiple DSP control operation
  • Battery Less operation compatible
  • Paralleling Compatibility
  • MPPT Based Solar Charger – 2 modes of operations
  • Higher Capacity PV connection option available
  • Multi Mode function: SGB/ SBG/GFM (selectable)
  • SBG Modes with Buffer level selection facility 25/50/75
  • GFM FEED mode feeds power to grid when grid available, feeds power to load when grid fails.
  • GFM levels are selectable 0/25/50/75/100
  • Unity power Factor for grid charging
  • Adjustable Grid Charging Current:
  • Vthd <3%
  • Changeover time less than 20ms
  • 20 X 4 LCD with backlight & Tactile Kay Pad Interface
  • Detailed Metering : Solar KW , Solar KWH
  • Fault logs : 6 recent faults
  • Auto fault reset for non critical faults
  • Optional Input : Pyranometer, Wind speed, Battery
  • Generator compatible
  • Communication Port: RS232
  • GSM Based Remote Monitoring option

Specification

Grid Charger
Grid Voltage Sync Range 170V to 260V (±5V)
Grid Frequency Sync Range 50Hz ± 6%
Charger Peak Efficiency Higher than 90%
Max Grid Import Power Capacity Double of Inverter capacity dependent on battery charging current
Max Batt Amp (Charging) 5A to 20A selectable
Self Consumption Lower than 4%
Charge Controller Type MPPT
Charger Topology BUCK
MPPT Voltage Range 65 –120V
Minimum PV Voltage 65V
Max I/P Amps per channel 41A
Max Battery Amps during PV charging Full Capacity in Boost Mode / Current Control in Float Mode as per Battery AH
Battery type Supported LMLA, VRLA, SMF, Ni-Cd: Charging Profile can be configured as per the battery requirement
Peak Charging Efficiency Higher than 94% Up to 98%
Inverter
Nominal Output Voltage 230V AC ±2%
Output Frequency 50Hz ± 0.5%
Voltage Regulation(Stand Alone) ±2%
Frequency Regulation(Stand Alone) ±0.5Hz
THD THD less than 4%
OUTPUT Waveform Pure Sine Wave
Galvanic Isolation In built Isolation Transformer at Inverter Output
Output Power Factor 0.8lagging
Overload capacity 125% FOR 60 SEC, 150% FOR 5 SEC / Can be customized
DG Compatibility Available
Auto Bypass feature Available
Grid Export Mode Available, Enable/Disable Options available
Anti Islanding Function Available, In Compliance with IEC 62116
Compatible IEC standards IEC -61683:1999- As per MNRE Requirement
Indication
LCD Display Parameters INPUT GRP | Voltage | Current | Frequency
Configuration
Modes Available 5: SBG, SGB, GSB, GFM, INV
Battery Buffer Setting Selectable from 25%,50%,75%
MPPT Modes 2
