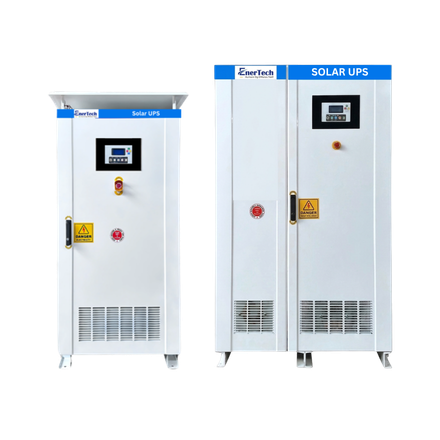

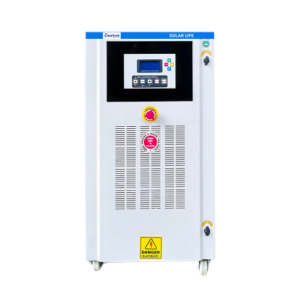

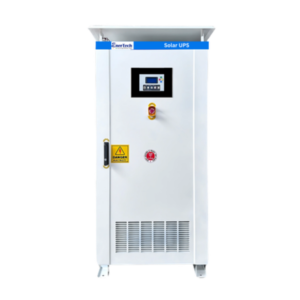

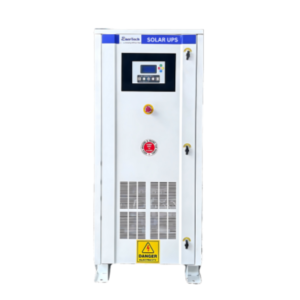

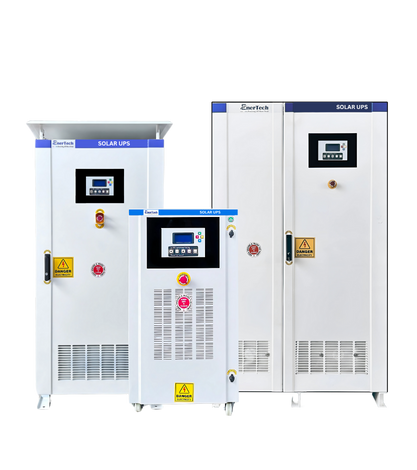

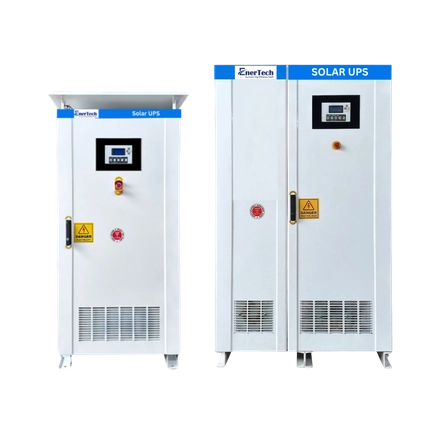

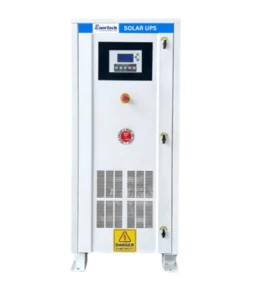

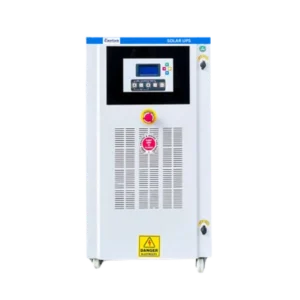

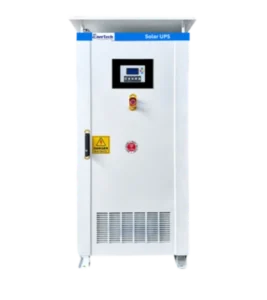

Solar Online UPS 3-3 Ph

Range 5KVA to 600KVA
Phase  3-3 Phase
Display 32 bit DSP based design
Mode Selectable priority SBG/SGB
Power Factor IGBT rectifier with PF >0.9
Design Custom make MPPT design
Indication Interactive front LCD to do all settings via display
MPPT Charger High efficient MPPT charger
Other Option Higher Amp Grid charger option
Monitoring Remote monitoring using GSM/RS-485

Description

Enertech has specialized in solar online UPS for industrial purposes. The inverter has been  designed in such a way that it fits different industrial purposes. The solar UPS has been created perfectly with the highest efficiency. Its pure sine wave output allows it to be suitable for industrial equipment and high-end electronics. The solar UPS allows uninterrupted electricity for a long time, as the load is kept constant and has approximately zero change over time. We have combined the highest level technology like distance working along with interactive front LED display for efficient performance.

Working of Solar Online UPS

The solar UPS has a grid frequency of 50Hz ± 6% and a selectable chargeable battery of 50 A to 200 A. The solar online UPS allows continuous electricity to heavy machines and industries. The solar panels in the inverter rely on sunlight and provide the much-required electricity. The MPPT based solar UPS has 2 MPPT modes and works smoothly in all equipment with the best battery support. They have a good inbuilt galvanic isolation transformer and peak efficiency higher than 75%.

The IGBT-based Solar Online UPS can handle industrial overload up to 125% for sixty seconds and 150% for five seconds. It can also be customized as per the requirement and also for varying load capacity. Its unique LED display shows different parameters of voltage, frequency, input GRP, and current.

The output frequency of 50hZ makes the solar online UPS a perfect choice for industrial purposes. The modes available for configuration are- grid export mode, VFD mode, and AC mode. The solar UPS is a perfect option for industries as it also works in extreme conditions and has an operating temperature of 0 to 40 degrees Celcius. They are also capable of working in rugged areas.

The EnerTech Solar online UPS functions with less than 65 dB acoustic noise level. The UPS can also work in relative humidity of up to 95%. Solar online UPS also has a buffer battery for emergency backup. The solar UPS priority is user-selectable and can be switched from solar to battery. These UPS can be controlled remotely using MODBUS, Ethernet, and RS232.

Why Solar Online UPS by EnerTech?

The Enertech Solar Online UPS 3Ph-3Ph has some of the best features which makes it better than other solar UPS. Our products are one of a kind and easy to use. The UPS is easy to maintain and is multipurpose. Enertech products are approved by MNRE and we are one of the few companies that have IEC-61683 for efficiency tests and IEC-60068 for environmental tests.

EnerTech is the leading supplier of solar UPS in India and has created a benchmark in Hyderabad, Pune, Bangalore, Vizag, Mumbai, Delhi, Cochin, Chennai, Ahmedabad, and Bhopal, etc. We have also exported our Industrial Solar Online UPS 3Ph-3Ph internationally to South Africa, Asian countries, UAE, etc. EnerTech is known for its services and technology. We offer full customer satisfaction and provide the best UPS. Solar UPS inverter 3Ph-3Ph is undoubtedly an ideal choice for industrial purposes and heavy machinery.

Features

  • MPPT (Maximum Power Point Tracking design)
  • DSP based technology
  • PFC based IGBT grid charger up to 100AMP capacity & parallel configuration is possible for higher ratings grid charger & MPPT controller ( concord/atlas)
  • Pure sine wave output with low THD
  • Pulse by pulse current limiting with auto reset resulting in efficient overload & short circuit protection
  • DC reverse polarity & battery deep discharge protection
  • Inbuilt galvanic isolation transformer
  • Advanced remote monitoring software(optional)
  • LCD display for metering input & output parameters
  • LCD Metering- PV voltage, current, KW, KWH, Grid voltage, current, frequency, battery voltage, status %
  • Buffer for battery backup in emergency
  • Power quality Audit / Scheduled shutdown / digital & graphical representation of parameter (optional)

Specification

Grid Charger
Grid Frequency Sync Range 50Hz ± 6%
Charger Peak Efficiency Higher than 90%
Max Grid Import Power Capacity Double of Inverter capacity dependent on battery charging current
Max Batt Amp (Charging) 5A to 200A selectable
Self Consumption Lower than 4%
Recommended DG/GRID Capacity Double of Inverter Capacity
Solar Charge Controller
Charge Controller Type MPPT
Charger Topology BUCK
No of MPPT Channels 1
Max Battery Amps during PV charging Full Capacity in Boost Mode / Current Control in Float Mode as per Battery AH
Battery Type Supported LMLA, VRLA, SMF, Ni-Cd: Charging Profile can be configured as per the battery requirement
Peak Charging Efficiency Higher than 94% Upto 98%
Inverter
Output Frequency 50Hz ± 0.5%
Voltage Regulation(Stand Alone) ±2%
Frequency Regulation(Stand Alone) ±0.5Hz
THD THD less than 4%
OUTPUT Waveform Pure Sine Wave
Galvanic Isolation Inbuilt Isolation Transformer at Inverter Output
Output Power Factor 0.8lagging
Peak Efficiency (Full Load) Higher than 75%
Overload capacity 125% FOR 60 SEC, 150% FOR 5 SEC / Can be customized
DG Compatibility Available
Auto Bypass feature Available
Grid Export Mode Available, Enable/Disable Options available
Anti Islanding Function Available, In Compliance with IEC 62116
Compatible IEC standards IEC -61683:1999- As per MNRE Requirement
Indication
LCD Display Parameters INPUT GRP | Voltage | Current | Frequency
Configuration
Battery Buffer Setting Selectable from 25%,50%,75%
MPPT Modes 2
Input-Grid
Input Voltage Range 415V AC ± 10% , 3Ph, 3W
Nominal Frequency 50 Hz (± 6%)
Input-Solar
VOC Range 0 – 900VDC
OUTPUT – VFD
Output Voltage 0- 415V AC ± 2 %, 3P, 3W
Output Frequency Variable
Duty Continuous
OUTPUT – AC MODE
Output Voltage 415V AC, 3P, 3W
Output Frequency 50hZ
Duty Continuous
OUTPUT – GRID EXPORT
Output Voltage 415V AC +-10%, 3P, 3W
Output Frequency 47-53
Anti Islanding Function Available
Duty Continuous
CONFIGURATION
Modes Available VFD Mode, AC MODE, GRID EXPORT
GRID Export Mode Enable / Disable Option Available
ENVIRONMENTAL
Acoustic Noise Level from 1 m ≤ 65 dB
Operating Temperature 0 to 40 Deg C
Storage Temperature -10 Deg C to 60 Deg C
Relative Humidity Up to 95 % (Non-Condensing)
Altitude < 1000 meter above sea level
PHYSICAL
Enclosure Protection Grade IP 20
Enclosure Thickness Frame 2.0mm & all covers 1.6mm
Cooling Forced Air
Colour RAL 7032 / RAL 7016
Cable Entry Bottom
CONNECTIVITY
Communication (all optional) RS 232 or Rs485, Modbus or GSM Connectivity or Wif
Monitoring (all optional) ENERLOG (Remote Monitoring Solution)



Download

Download PDF

Request Quote

=

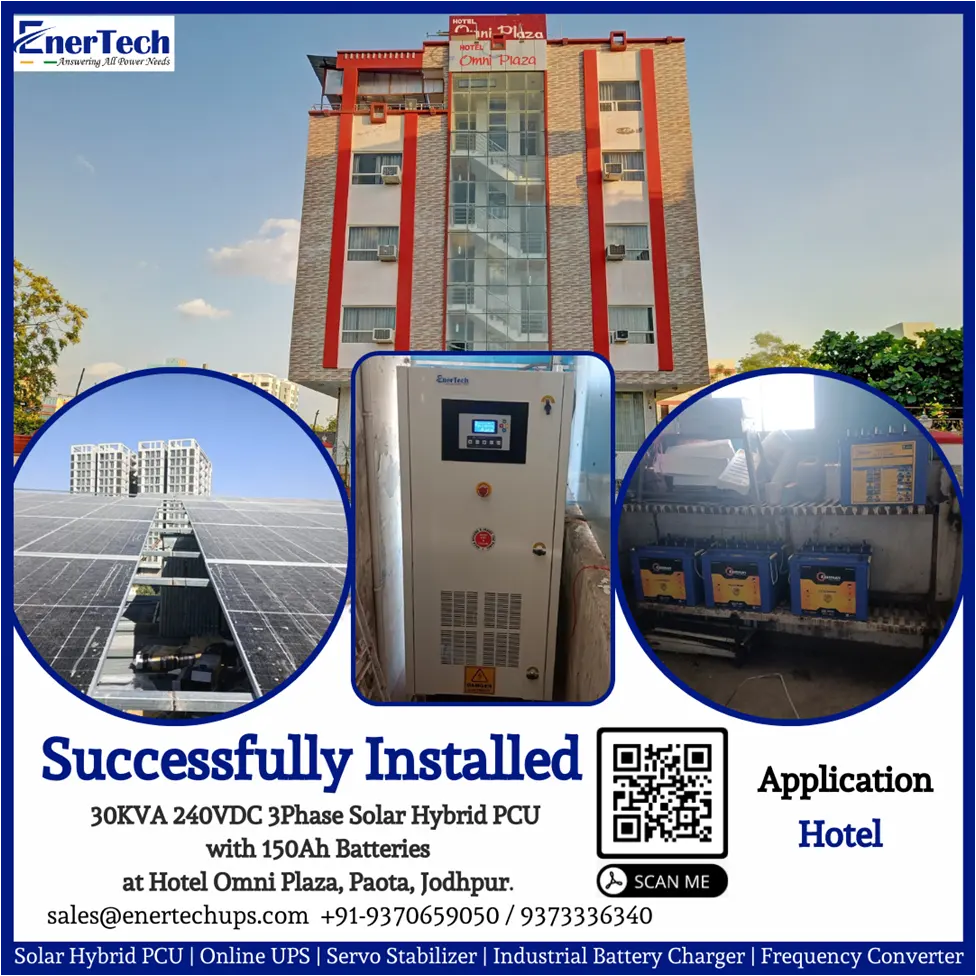

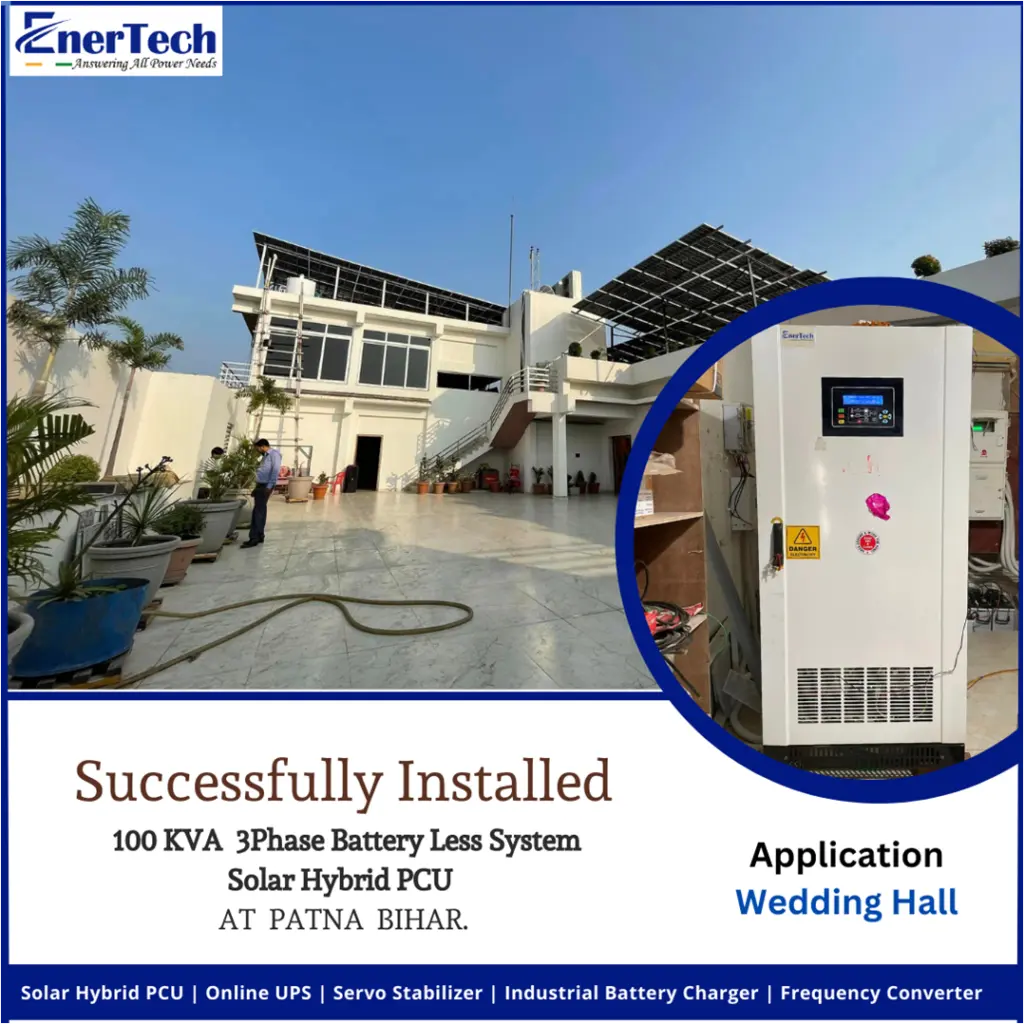

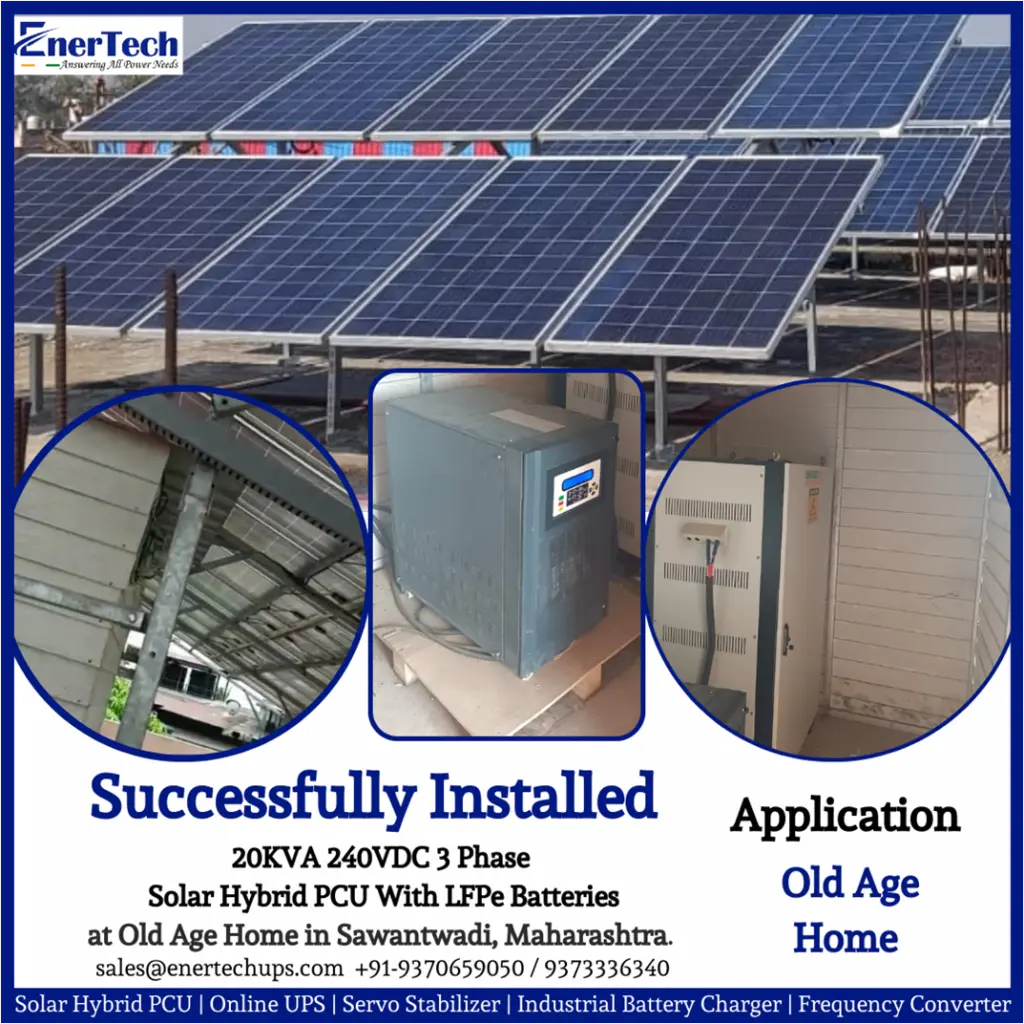

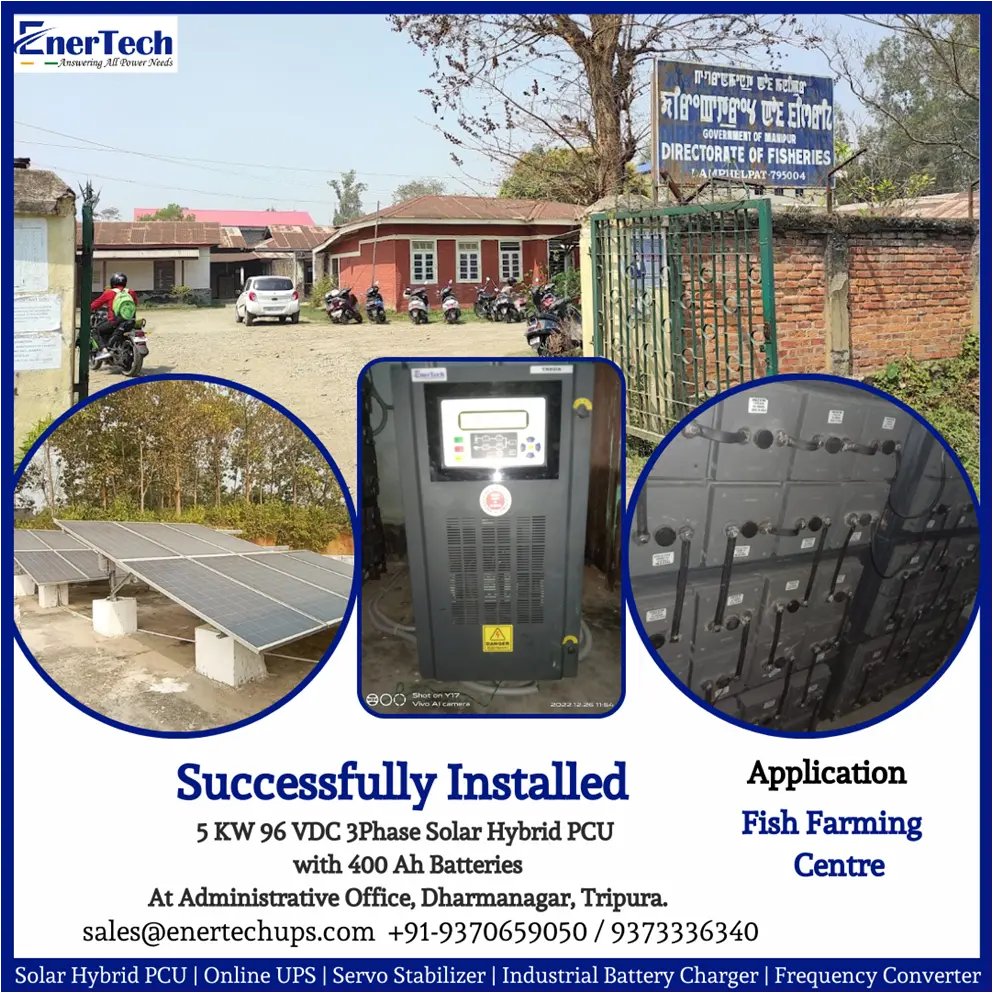

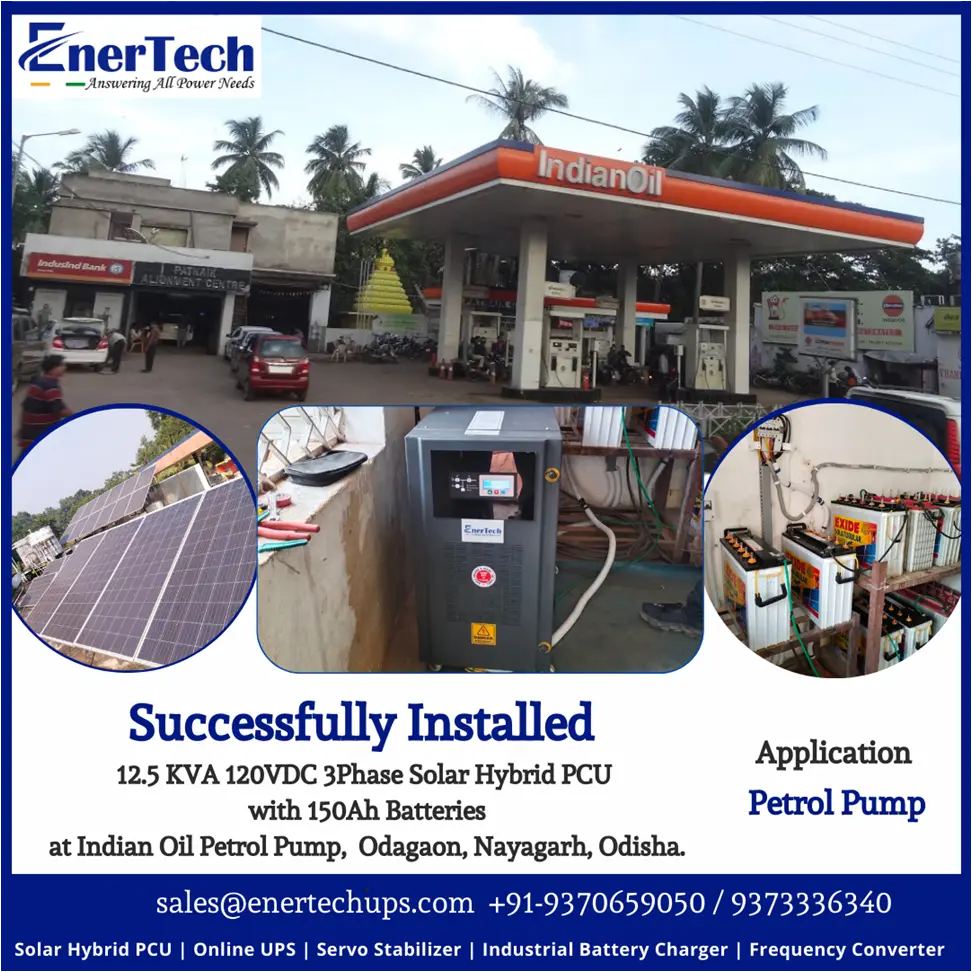

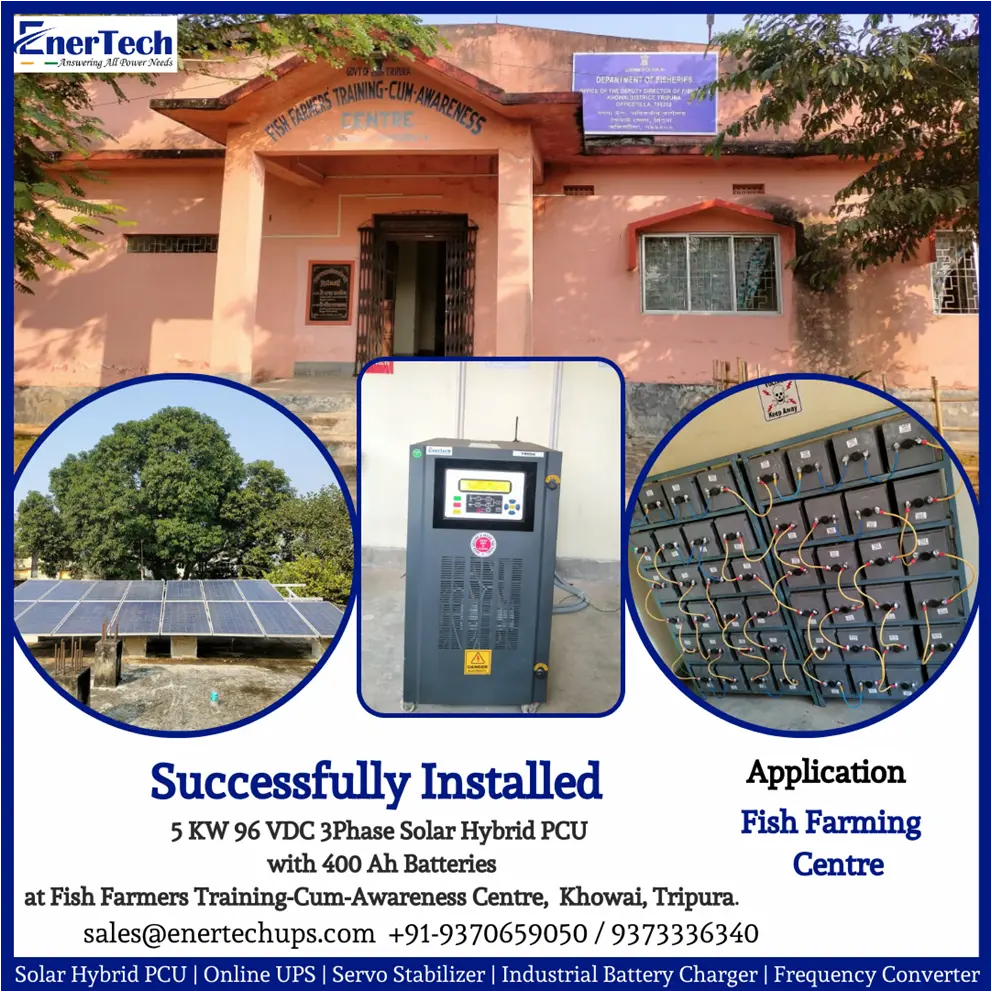

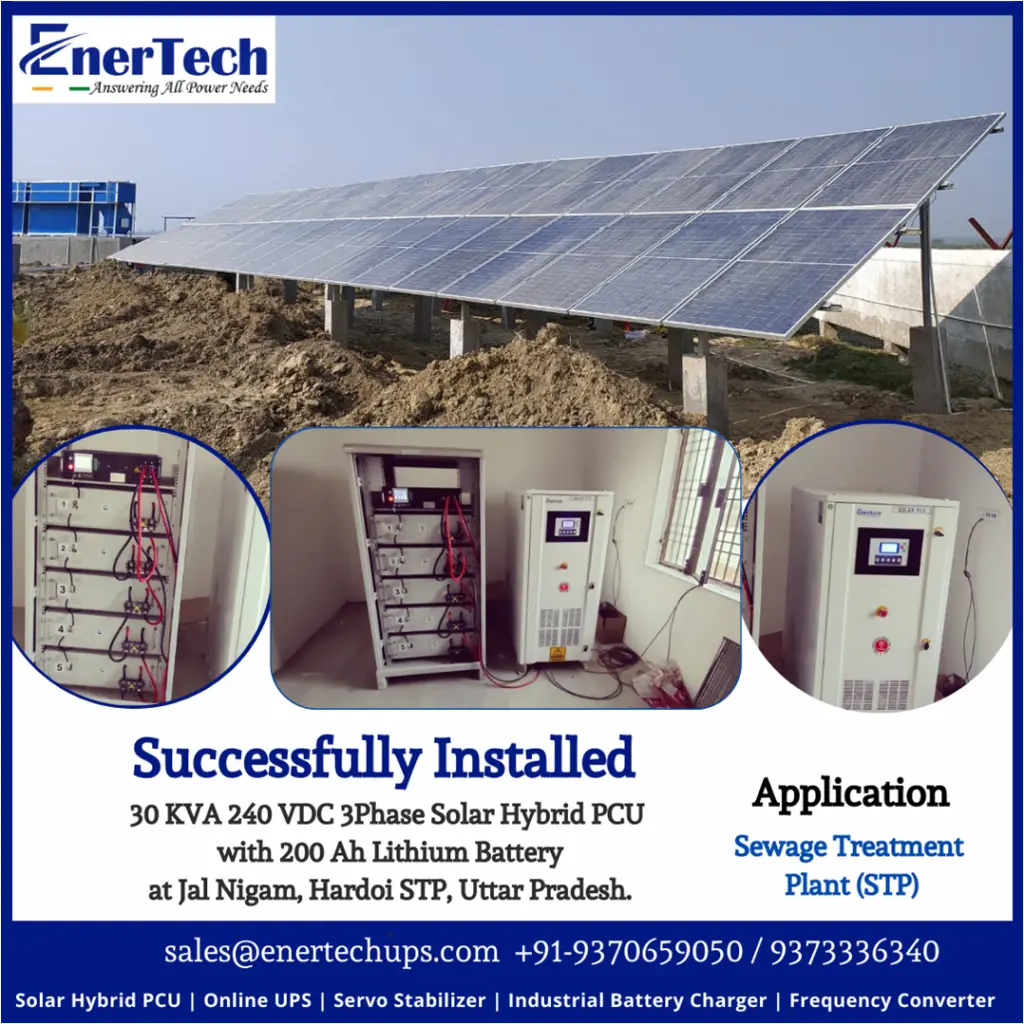

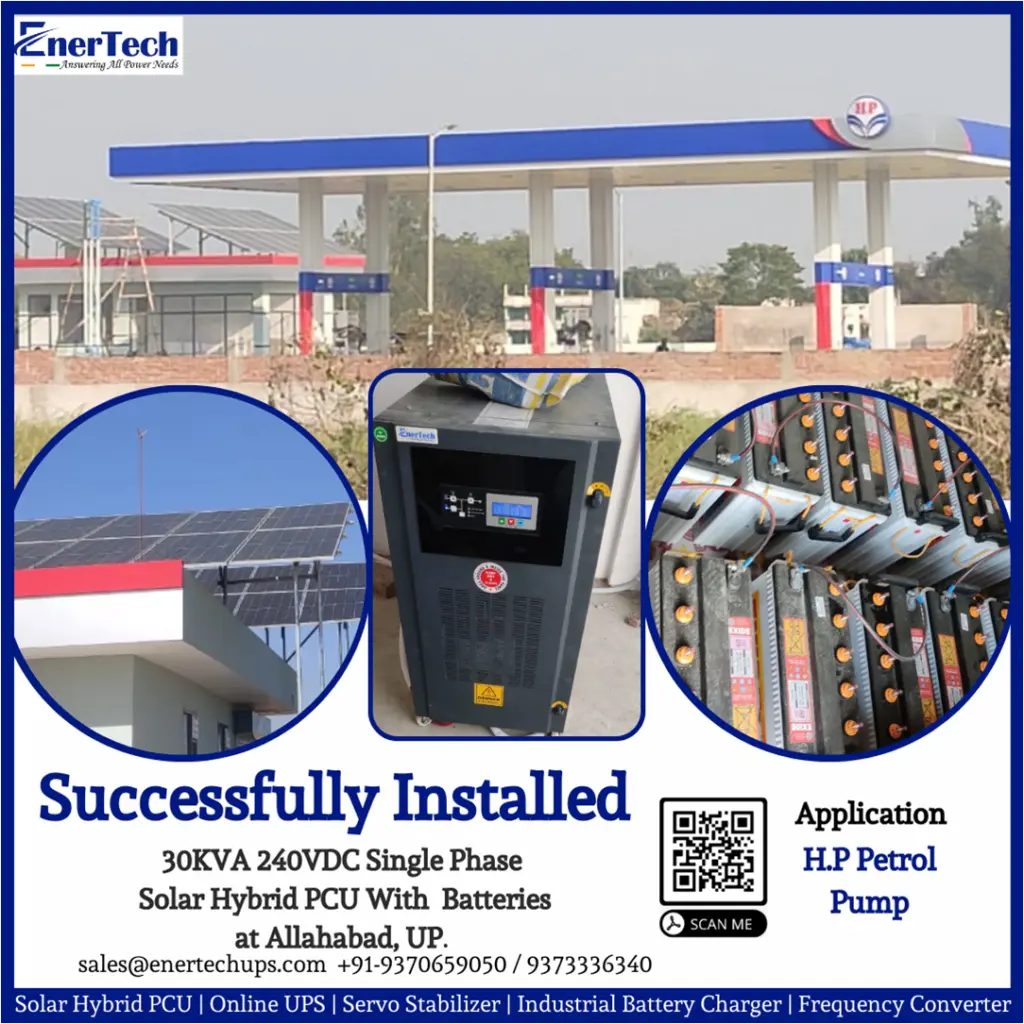

Successful Installation of Solar Online UPS
