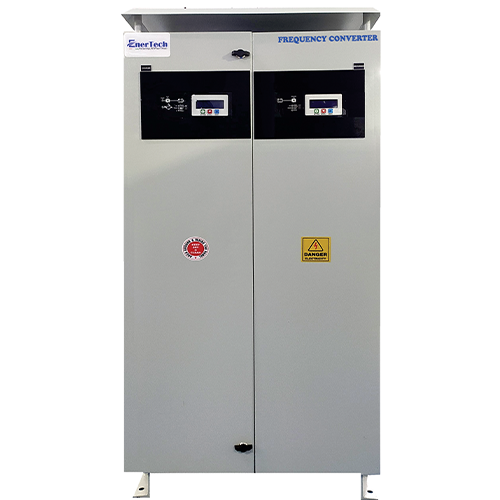

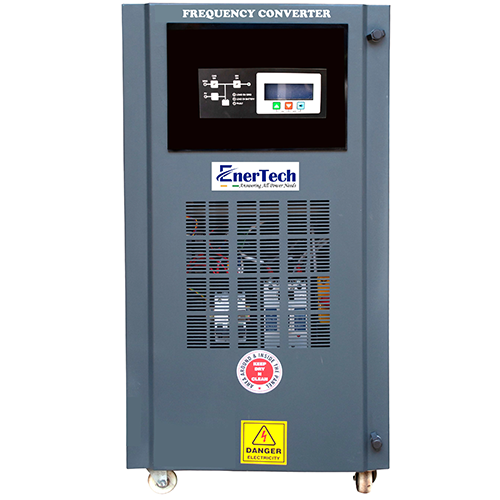

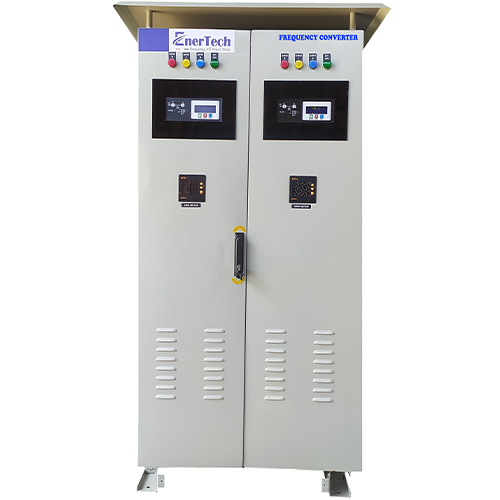

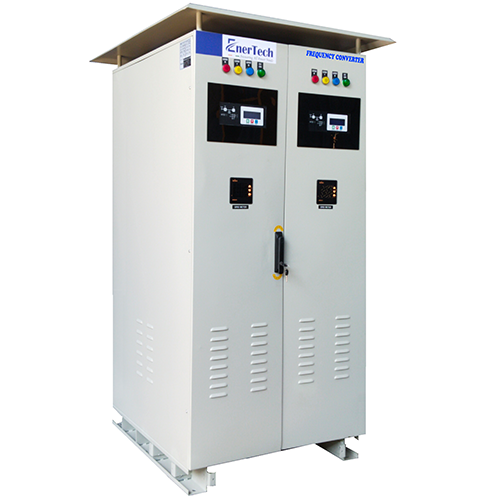

Static Frequency Converter

Range 1KVA to 300KVA
Phase 1 Phase and 3 Phase
Display 32 bit DSP based design
VDC models Low VDC models up to 96V/120V available
Overloading Overloading of 200% to handle surge currents
Power Factor IGBT rectifier with PF >0.9
Frequency 50Hz : 60Hz : 400Hz
Drawing Ready documents for SLD, GA, BOM & schematic

Description

ENERTECH has a passion for achieving customer delight by offering products to add value beyond customers’ anticipation. ENERTECH not only responds rapidly to customer needs, but it also carefully listens to consumers and design product to meet future requirements.

A static frequency converter is an electrical device that converts the alternating current (AC) of one distribution standard frequency & voltage to the alternating current of another frequency & voltage of another distribution standard.

ENERTECH frequency converter uses highly efficient IGB
T-based architecture with PWM-based design to achieve a higher stability and crest factor.

Features

  • Compatible with existing water pump controller set up
  • High yield from the solar PV panels as the set ups is utilized to maximum extent in a day
  • No dependency on Grid power in day time
  • Noise free operation -No Noise pollution
  • No Air Pollution
  • Low Maintenance

Specification

Power Rating 1 KVA to 300 KVA
Input Voltage Most standard AC voltages including 115, 120, 200, 208, 220, 240, 277, 380, and available in single and three-phase configurations.
PF Correction Available
Output Voltage Most standard AC voltages including 115, 120, 200, 208, 220, 240, 277, 380, and available in single and three-phase configurations.
Frequency 50 Hz, 60 Hz, or 400 Hz (+/-0.5%)
Frequency Regulation +/-0.5% N.L. to F.L.
Voltage Regulation +/-1.5% N.L. to F.L.
Efficiency Approximately 85-95% (depending on rating)
Total Harmonic Distortion 3% Typical, 5% Max
Overload 120% Typical Power Factor: 0.7 Lead to 0.7 Lag
Input Circuit Protection Circuit Breaker / Fuses, Transient Suppressors Output
Circuit Protection Current Limit, Short Circuit Protection, Thermal Protection, and Semi-Conductor Protection
Operating Temp -20°C to +50°C Standard
Cooling Forced Air by internal DC brushless fan
Vibration Normal shipping and handling
Elevation 10,000 ft. typic
Humidity to 95% RH non-condensing
