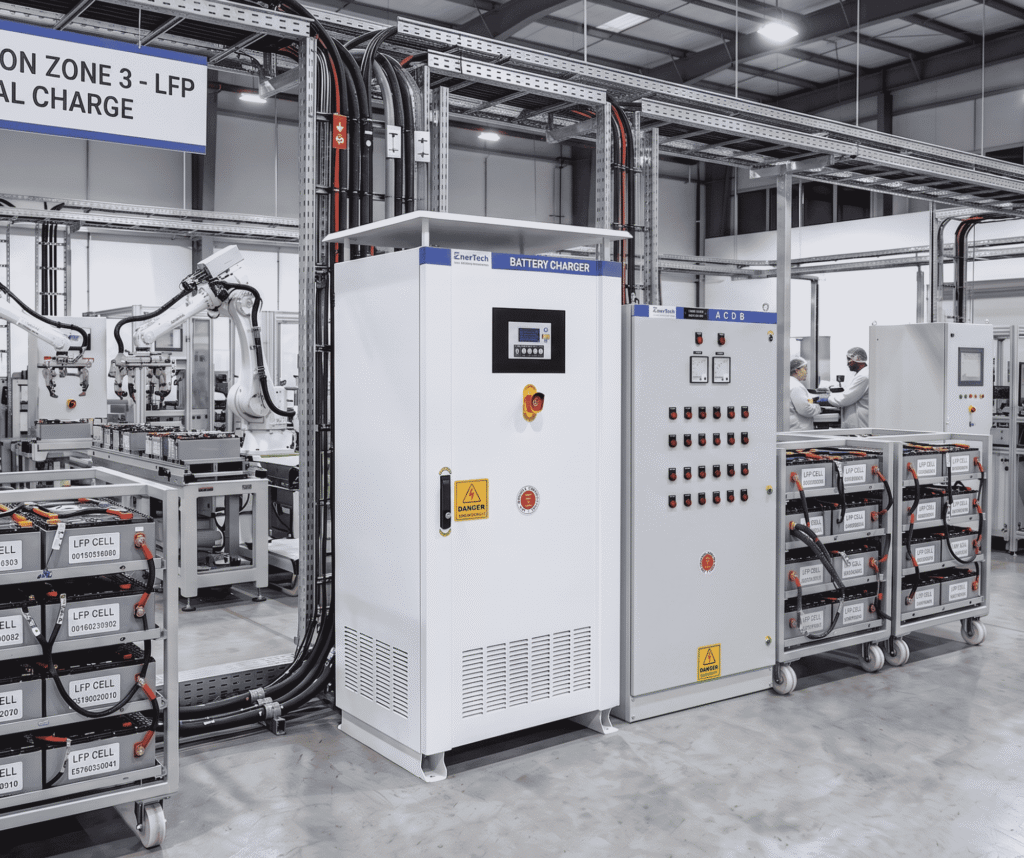

In high-reliability industrial power setups, a high-performance battery charger is only as dependable as the distribution infrastructure supporting it. AC Distribution Boards (ACDB) and DC Distribution Boards (DCDB) form the vital link between incoming utility power, battery backup banks, charging systems, and mission-critical station loads. Engineered to provide structured power routing, fault isolation, and comprehensive surge suppression, ACDB and DCDB panels safeguard vital substation switchgear, DCS automation, protection relays, and emergency drives from costly electrical failures.
| Feature | Specification |
|---|---|
| Range | 24V/48V/110V/220V /360V to Upto 800 Amp |
| Phase | 1P-1P | 3P-3P |
| Display | DSP based design |
| Battery Type | Lithium-ion, Lead-Acid |
| Isolation | Transformer based for complete isolation |
| Communication Protocol | Specific protocol used for RS-485 communication |
| Protection Features | Safety features (e.g., overcharge, over-discharge, short circuit) |
| Operating Temperature | Temperature range for optimal operation |
| EBMS Compatibility | Supported BMS communication protocols |
In high-reliability industrial power setups, a high-performance battery charger is only as dependable as the distribution infrastructure supporting it. AC Distribution Boards (ACDB) and DC Distribution Boards (DCDB) form the vital link between incoming utility power, battery backup banks, charging systems, and mission-critical station loads. Engineered to provide structured power routing, fault isolation, and comprehensive surge suppression, ACDB and DCDB panels safeguard vital substation switchgear, DCS automation, protection relays, and emergency drives from costly electrical failures.
Understanding ACDB & DCDB in Battery Charging Infrastructure

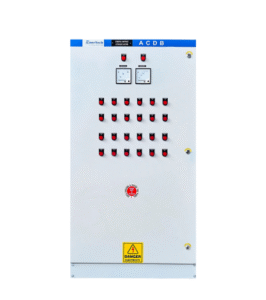

AC Distribution Board (ACDB): Manages incoming AC mains/generator supply, stepping down and routing clean power to primary and standby battery chargers, auxiliary cooling systems, and local utility outlets while protecting against line surges, phase imbalances, and grid faults.

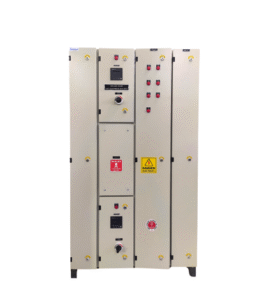

DC Distribution Board (DCDB): Distributes conditioned DC power directly from the charger and battery bank bus to various plant loads (e.g., 24V, 48V, 110V, or 220V DC circuits). It houses individual branch circuit breakers, earth-leakage detectors, and isolation mechanisms to isolate branch faults without dropping the central DC bus.
The EnerTech Advantage: Industrial Manufacturing Mastery
EnerTech designs and manufactures integrated ACDB and DCDB distribution solutions built to operate seamlessly alongside industrial Float-cum-Boost Chargers (FCBC) and switchgear systems in demanding plant conditions.
Heavy-Duty Busbar Engineering: Built with high-purity, tin-plated or silver-plated electrolytic copper busbars, precision-sized to withstand extreme short-circuit fault currents (up to 50kA for 1s) with low thermal rise.
Coordinated Fault Discrimination: Features meticulously calculated breaker coordination (MCCBs, MCBs, and fast-acting semiconductor fuses) to ensure downstream branch faults trip locally without disturbing the main charger or dropping the station DC bus.
Advanced Earth Fault & Leakage Monitoring: Integrated online DC earth fault detection systems identify positive or negative bus leakages early, preventing phantom tripping of sensitive protection relays.
Comprehensive Multi-Stage Surge Protection: Heavy-duty Type 1+2 / Class B+C Surge Protection Devices (SPDs) shield sensitive charger electronics and DC coils from lightning surges and switching transients.
SCADA & IoT Telemetry Ready: Equipped with digital multifunction energy meters, shunt transducers, and RS485/Modbus connectivity for live telemetry of bus voltages, branch load currents, and breaker status.
EnerTech designs ACDB and DCDB panels specifically tuned to the electrical characteristics and ripple thresholds of industrial battery chargers.
EnerTech builds Form 3b/4b compartmentalized designs with insulated barriers, ensuring that maintenance on one branch circuit can be done safely while the rest of the station remains live.
EnerTech engineers custom multi-voltage DCDBs (e.g., dual 110V/24V or dual-bus A/B configurations with mechanical/electrical interlocks) tailored to complex substation architectures.
Built with heavy gauge CRCA sheet steel (1.6mm to 2.0mm), 7-tank pre-treatment powder coating, and custom ingress protection ratings up to IP55, suited for dusty, humid, or corrosive environments.
Every EnerTech distribution panel undergoes rigorous dielectric insulation, high-voltage withstand, temperature-rise, and short-circuit verification in state-of-the-art facilities before dispatch
Signaling power distribution, traction substations, and trackside communication networks.
Delivering success through 35,000+ satisfied customers over the past 35+ years with our impeccable Battery Energy Storage System Installation.
Trusted by industries, businesses, and institutions for reliable solar and energy storage solutions. Proven performance backed by decades of engineering excellence and customer confidence.
The EnerTech Distribution Panel covers a wide range of 24V / 48V / 110V / 220V / 360V up to 800 Amp, making it suitable for both small and large-scale power setups.
Yes — EnerTech's Distribution Panels are compatible with both Lithium-ion and Lead-Acid battery types, eliminating the need for separate setups for different battery chemistries.
The panel includes overcharge, over-discharge, and short-circuit protection, along with transformer-based isolation for complete electrical safety across your connected loads.
Yes — it supports RS-485 communication protocol and BMS handshaking, enabling real-time monitoring and intelligent, adaptive charging for optimal battery health and performance.
