| Parameter | Specification |
|---|---|
| Series | SunMagic+ (Three Phase) |
| Capacity Range | 10 kW – 125 kW |
| Configuration | Three-phase hybrid PCUy |
| DC / Battery Voltage | 48V (confirm verify feasibility across full kW range on datasheet) |
| Control Technology | 32-bit DSP |
| Solar Tracking | MPPT |
| Output Voltage | 360–450 VAC (3-phase) (confirm from datasheet) |
| Nominal Frequency | 50 Hz (±6%) (confirm) |
| Battery Compatibility | Lead-acid / Lithium-ion / others |
| Operation Modes | Grid-tie, Off-grid, Hybrid; Battery & Batteryless |
| Changeover Time | Zero / no-break |
| Grid Charging | Settable 0–100% of PCU rating |
| Monitoring | Built-in logic + optional GSM/data software |
| Approvals | MNRE approved |
| Parameter | 5–20 kW | 29–60 kW | 80–125 kW |
|---|---|---|---|

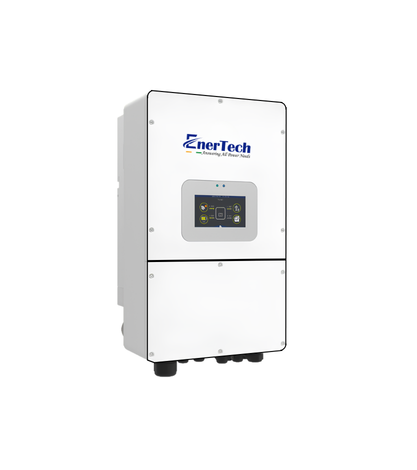

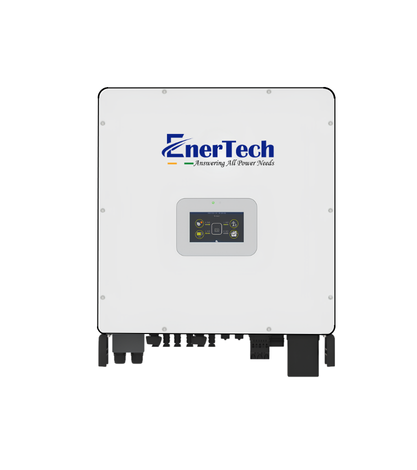

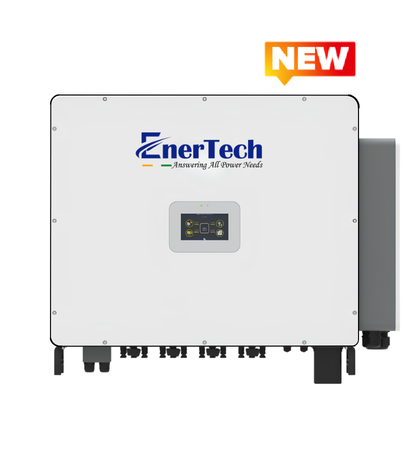

| Rated Power | 5 / 6 / 8 / 10 / 12 / 16 / 20 kW | 29 / 30 / 40 / 50 / 60 kW | 80 / 100 / 110 / 125 kW |
| Battery Voltage | 48 VDC (40–60 V) | 200–800 VDC | 200–800 VDC |
| Battery Type | Li-ion / Lead-acid / User Selectable | Li-ion | Li-ion |
| Max. PV Input Power | 7.5 / 9 / 12 / 15 / 18 / 22.5 / 30 kW | Model Dependent | Model Dependent |
| Max. PV Input Voltage | 500 V | 800 V | 800 V |
| MPPT Voltage Range | 120–450 V | 180–800 V | Model Dependent |
| Max. PV Input Current | 25 A / MPPT | Model Dependent | Model Dependent |
| AC Output Voltage | 380 / 400 / 415 V, 3-Phase + N + PE | 380 / 400 V, 3-Phase | 380 / 400 V, 3-Phase |
| Frequency / Power Factor | 50 / 60 Hz / 0.8 Lead–0.8 Lag | 50 / 60 Hz / >0.99 | 50 / 60 Hz / >0.99 |
| THD / Efficiency | <3% / MPPT: up to 99.6% / Euro: up to 98% | <3% / MPPT: up to 99.3% / Euro: up to 98.7% | <3% / MPPT: up to 99.6% / Euro: up to 98.3% |
| Backup / Switching Time | Supported / <10 ms | Available / Model Dependent | Available / <10 ms |
| Protection / Communication | IP65 / RS485, CAN, Wi-Fi, Optional 4G | IP65 / Wi-Fi, RS485, CAN, RS232 | IP65 / Wi-Fi, RS485, CAN, RS232 |
Maximize self-consumption of solar energy and reduce dependency on costly grid power, delivering measurable savings on every energy bill, month after month.
With switch times under 10ms and full backup (EPS) support, your critical loads stay online through grid outages, so operations never stop.
Transformerless HF design combined with IP65/IP66-rated enclosures ensures reliable operation in harsh indoor and outdoor industrial environments for years to come.
From 10kW to 125kW, the modular range supports parallel operation and unbalanced 3-phase loads, so the same trusted technology grows from small commercial sites to large industrial plants.
Integrated Zero-Export function, peak shaving, valley filling, and 7 intelligent working modes automatically optimize energy flow for maximum ROI with minimal manual intervention.
Real-time EMS cloud platform and mobile app give you instant alerts, remote monitoring, and performance analytics across every inverter, anytime, anywhere.

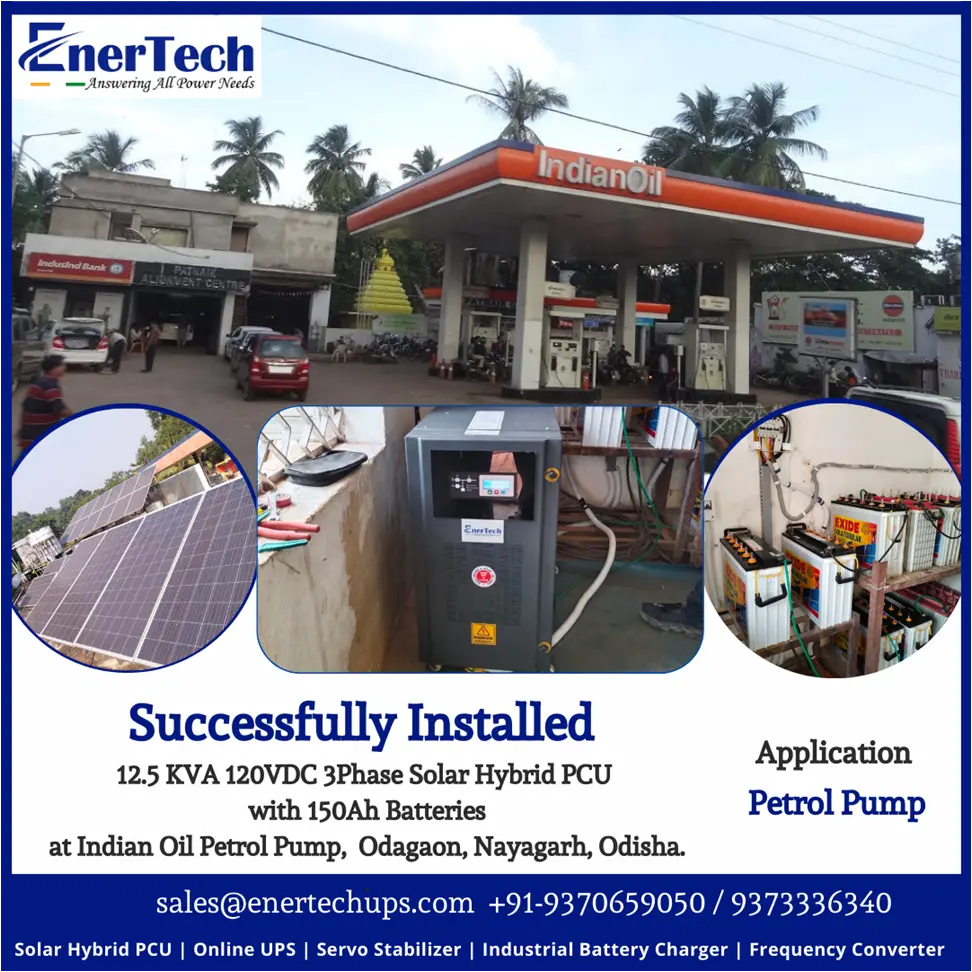

Commercial rooftop solar plants · Industrial and manufacturing units · Cold storage · Petrol pumps · Data-supporting infrastructure · EV charging with solar integration · Resorts and hospitality · Remote and off-grid three-phase sites · Utility-scale solar plant management.
10kW to 125kW three-phase output, covering the full 5kW–20kW, 29kW–60kW, and 80kW–125kW model line-up for every scale of commercial and industrial deployment.
Max. MPPT efficiency up to 99.5%, Euro efficiency up to 98.7%, and battery-to-load efficiency up to 97.8%, translating to more usable solar power and lower operating costs.
High-frequency, transformerless design for a lighter footprint, faster response, and superior conversion efficiency compared to conventional low-frequency inverters.
Compatible with Li-ion batteries across 150V–800V, with self-adapting BMS charging strategy for seamless integration with leading battery brands.
Built-i WIFI/GPRS/CAN/RS485 connectivity paired with a 4.3″ color touchscreen LCD and cloud-based EMS platform for real-time performance tracking.
Sustains up to 200% rated power overload for 10 seconds and 110%–150% continuous overload, ensuring stable performance even under sudden load spikes.
Independent MPPT string configurations (up to 8 trackers on higher-capacity models) for maximum energy harvest across varied roof orientations and PV array layouts.
Anti-islanding, PV reverse polarity, over-voltage/over-current, insulation resistance, RCD detection, and short-circuit protection for complete system safety.
IP65 (up to 60kW) and IP66 (80kW–125kW) protection degree, engineered for reliable indoor and outdoor deployment in demanding environments.
Functions reliably from -25°C to 60°C (-30°C for higher-capacity models) and up to 4000m altitude, with intelligent fan cooling for consistent thermal performance.

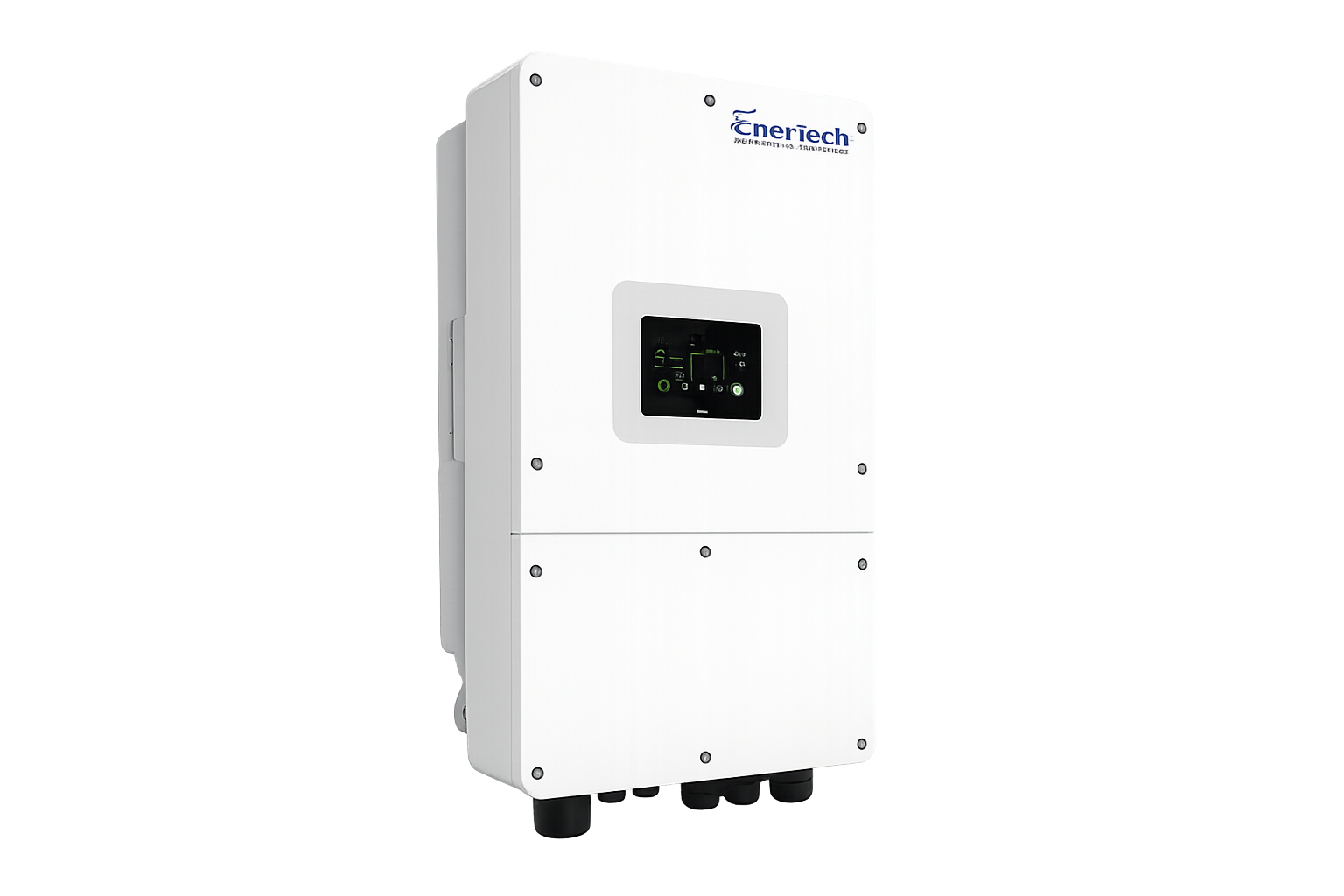

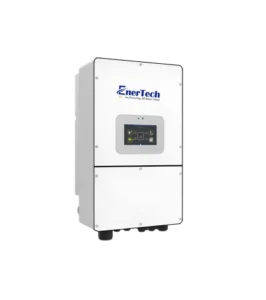

The EnerTech 10kW–125kW Three-Phase HF Solar Hybrid Inverter series is purpose-built for businesses, industries, and large-scale residential-commercial establishments that demand more than just solar power — they demand a complete, intelligent energy management solution. As a high-frequency (HF), transformerless three-phase hybrid inverter, this series bridges solar generation, battery energy storage, and grid power into a single, unified system that adapts in real time to your energy needs.
Unlike conventional low-frequency inverters that rely on heavy transformers, EnerTech’s transformerless HF architecture delivers faster switching, lighter weight, and significantly higher conversion efficiency — with MPPT efficiency reaching up to 99.5% and Euro efficiency up to 98.7%. This means more of the solar energy your panels generate actually reaches your loads and batteries, translating directly into lower electricity bills and faster return on investment.
Spanning power ratings from 10kW all the way to 125kW across multiple model tiers (5kW–20kW, 29kW–60kW, and 80kW–125kW), the series is designed for true scalability. Whether you’re powering a small-sized commercial establishment, a manufacturing unit, a cold storage facility, a fast station, or a large industrial complex, there’s a model in this range engineered to match your load profile — with support for parallel operation and 100% unbalanced three-phase output on both grid and backup ports.
At the core of the system is a robust battery hybrid architecture supporting Li-ion batteries across a wide 150V–800V voltage range, with a self-adapting Battery Management System (BMS) charging strategy that ensures compatibility with a broad range of battery brands and configurations. The inverter’s 7 intelligent working modes automatically manage the flow of energy between solar, battery, and grid — including peak shaving, valley filling, and zero-export functionality — to maximize self-consumption, avoid grid penalties, and unlock the full financial value of your solar investment.
Reliability is engineered into every layer of the system. The series is built to sustain 200% rated power overload for short bursts and 110%–150% continuous overload, ensuring your system doesn’t buckle under sudden demand spikes from heavy machinery or compressor start-ups. A comprehensive protection suite — including anti-islanding, PV reverse polarity, over-voltage/over-current, insulation resistance monitoring, RCD detection, and short-circuit protection — safeguards both your equipment and your personnel. Housed in IP65/IP66-rated enclosures, these inverters are built to perform reliably under harsh industrial conditions, ensuring stable operation in a controlled environment or outdoors exposed to dust, humidity, and temperature extremes ranging from -25°C to 60°C.
Smart connectivity rounds out the offering. Every unit comes equipped with a 4.3″ color touchscreen display along with WiFi, GPRS, CAN, and RS485 communication interfaces, giving you full local and remote control. Paired with the EnerTech’s cloud-based EMS platform and mobile app, you get real-time monitoring of energy generation, consumption, conversion efficiency, and system health — with instant alerts for abnormal operating conditions, ensuring your team can act before small issues become costly downtime.
Backed by a 5-year standard warranty (extendable), 24x7x365 customer support, and EnerTech’s growing domestic and international presence, the 10kW–125kW Three-Phase HF Solar Hybrid Inverter series isn’t just a product — it’s a long-term energy partner.
Whether your goal is to slash operating costs, secure uninterrupted backup power, meet sustainability targets, or future-proof your facility for emerging energy markets like VPP (Virtual Power Plant) and DSO (Distribution System Operator) programs, this inverter series delivers the performance, safety, and intelligence to get you there.
Ideal Applications: Commercial & Industrial (C&I) solar installations, manufacturing plants, warehouses and cold storage, fuel stations and highway infrastructure, large residential-commercial complexes, agricultural and processing facilities, and any high-load environment requiring dependable three-phase backup power.
By eliminating the bulky low-frequency transformer found in older inverter designs, this HF architecture achieves faster response times, a lighter physical footprint, and higher overall conversion efficiency. The result is more solar energy converted into usable power, with less energy lost as heat.
The integrated zero-export capability automatically prevents excess solar power from being fed back into the grid, keeping your installation compliant with local utility regulations while ensuring every unit of solar energy generated is put to productive use on-site.
This intelligent load-management feature draws on battery power during peak-demand periods (peak shaving) and charges the battery during low-demand periods (valley filling), smoothing out your facility's energy consumption pattern and reducing demand-based tariff charges.
Industrial and commercial loads often spike suddenly — think motor start-ups or HVAC compressors kicking in. This inverter’s ability to sustain 200% rated overload for short durations and 110%–150% continuously means your system absorbs these spikes without tripping or degrading performance.
Seamless integration with diesel or backup generators via dry-contact auto changeover switch means your facility maintains continuous power supply even during extended grid outages or when battery reserves run low — no manual switching required.
With independent MPPT inputs (scaling up to 8 trackers on higher-capacity models), the system maximizes energy harvest even when solar panels face different orientations, shading conditions, or string configurations — squeezing out every available watt from your PV array.
The inverter automatically switches between solar-priority, battery-priority, grid-priority, backup, and other operating modes based on real-time conditions — so you get seamless always-the-smartest, most cost-effective decision-making without requiring manual configuration.
Real-world industrial loads are rarely perfectly balanced across all three phases. This inverter is engineered to handle 100% unbalanced output on both the grid-tied and backup ports, ensuring stable power delivery even when individual phase loads vary significantly.
With a self-adapting BMS charging strategy, the inverter seamlessly integrates with a broad range of Li-ion battery brands and voltage configurations, giving you the flexibility to choose the storage solution that best fits your budget and capacity needs — without compatibility headaches.
Whether mounted in a dusty warehouse, a coastal facility, or an outdoor installation exposed to the elements, the enclosure is rated to resist dust ingress and water exposure, ensuring long-term reliability without the need for additional protective housing.
Track energy generation, consumption, battery status, and system health from anywhere via the EnerTech’s EMS platform and mobile app. Instant alerts for abnormal conditions mean issues are flagged and resolved before they escalate into costly downtime — giving facility managers complete peace of mind.
Designed to support scalable expansion through parallel operation, the series allows facilities to start with the capacity they need today and expand seamlessly as energy demands grow — protecting your initial investment for the long term.
