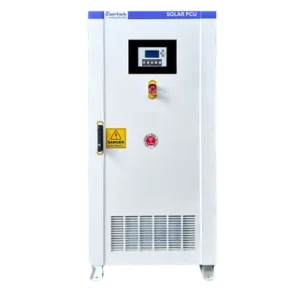

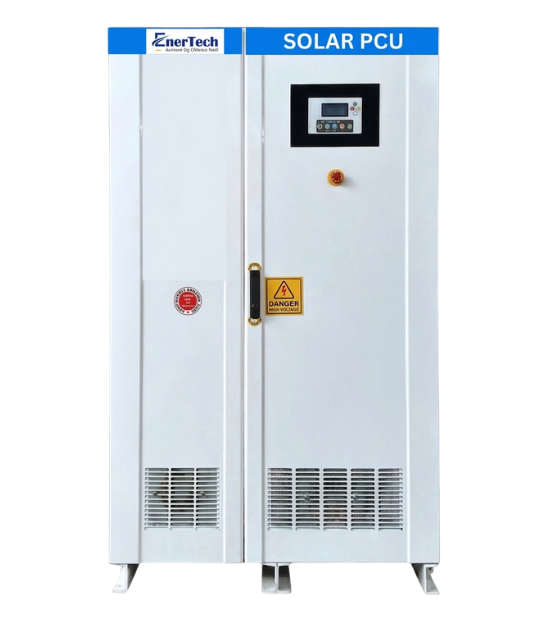

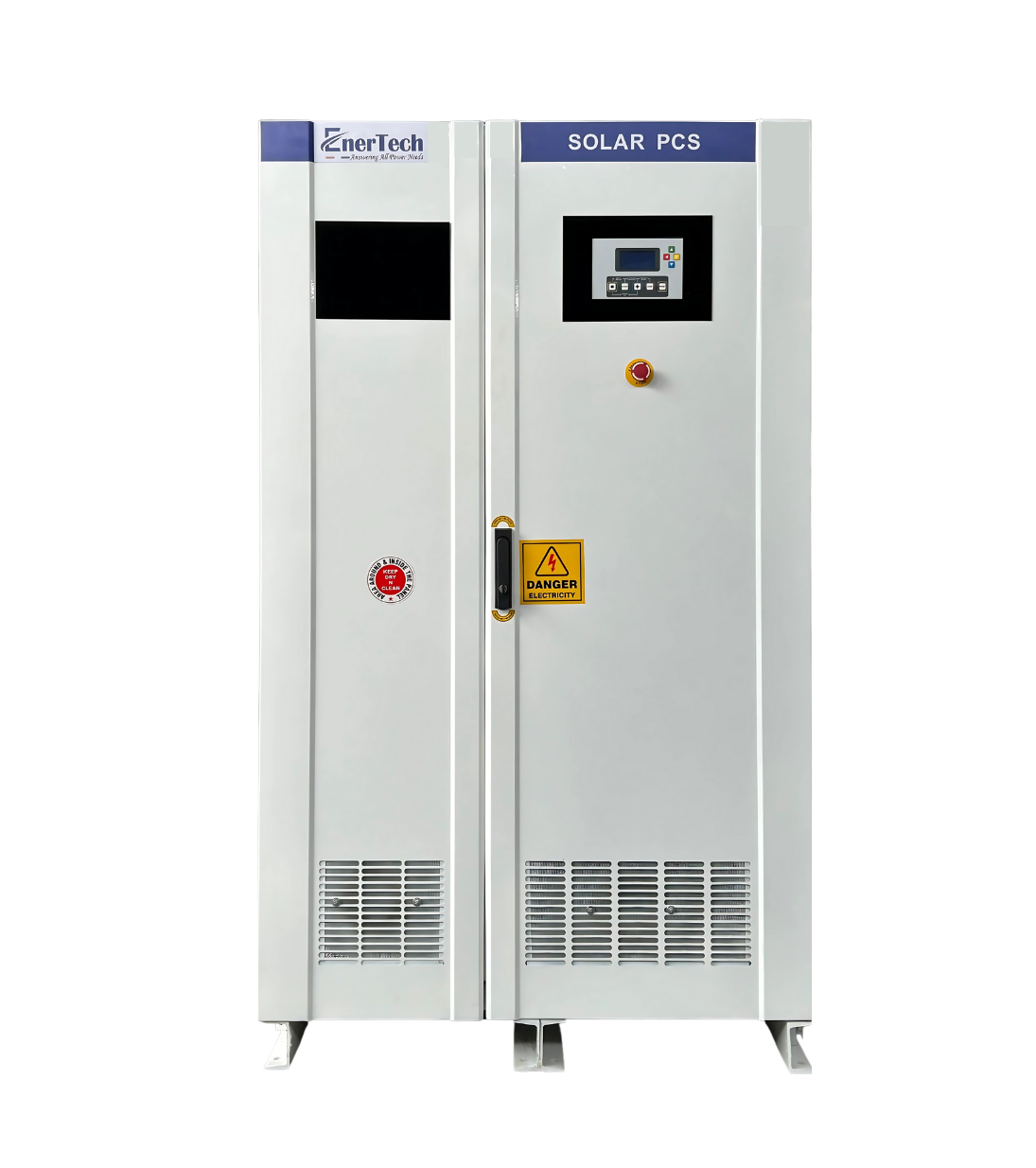

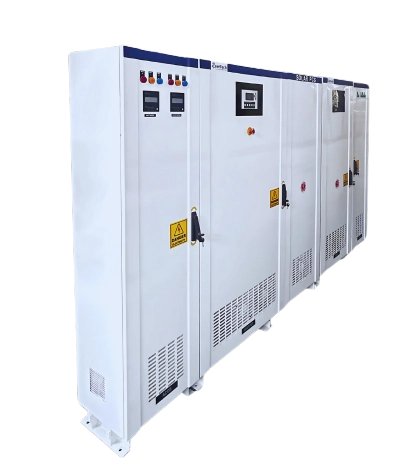

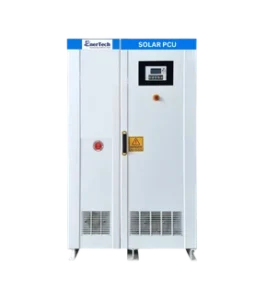

Solar Hybrid Inverter 3Ph- REeFI

Range 5KVA to 600KVA
Phase 3 Phase
Display 32 bit DSP based design
Mode Multi modes working SBG/SGB/Export/Batteryless
Power Factor IGBT rectifier with PF >0.9
Design Customized MPPT design
Indication Interactive front LCD to do all settings via display
Control MODBUS control for handshaking
Redundancy Paralleling option
Monitoring Remote monitoring using GSM/RS-485

Description

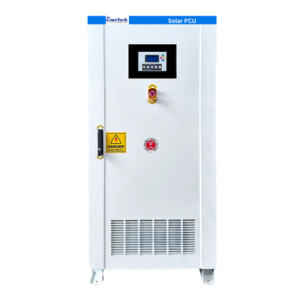

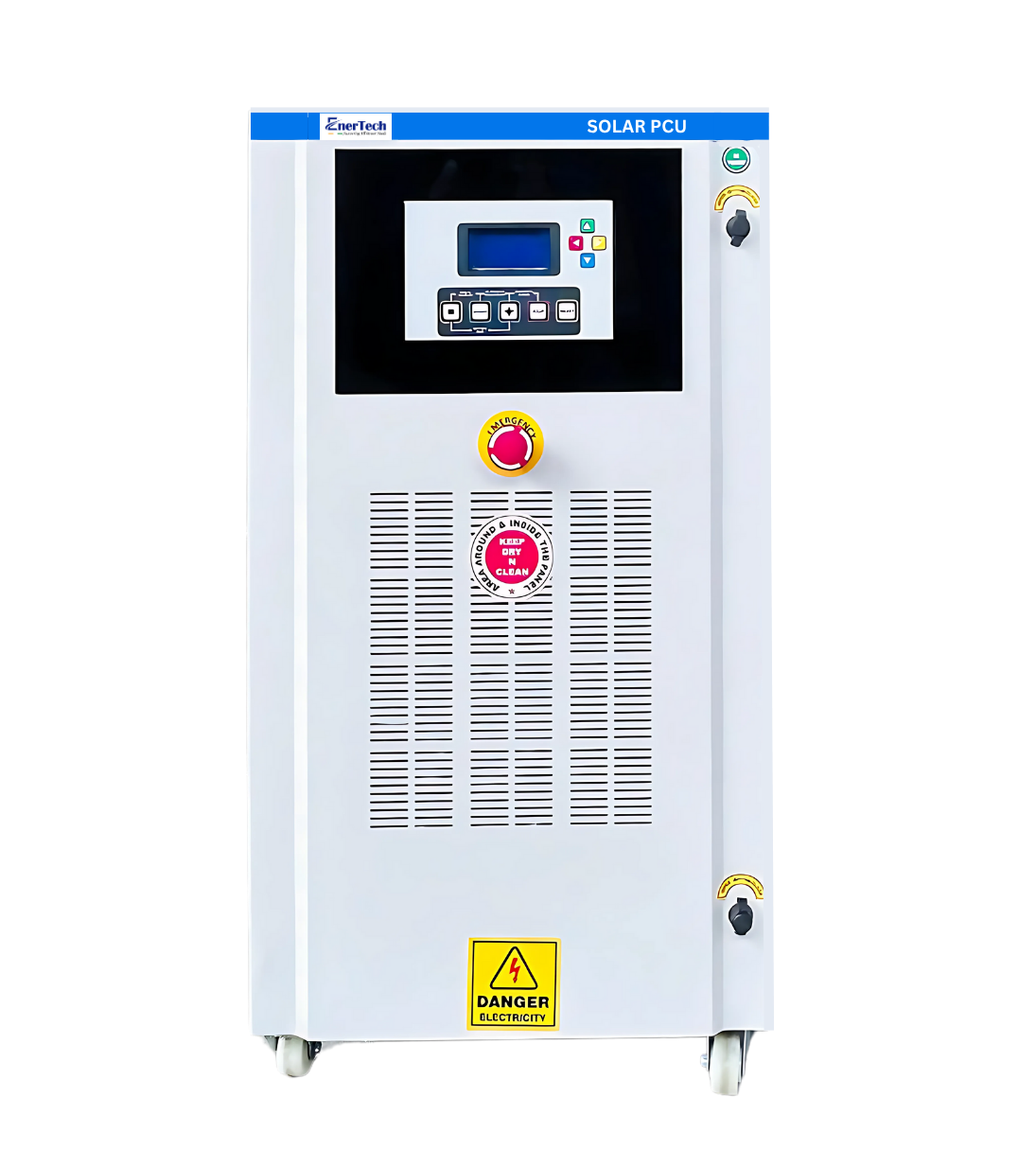

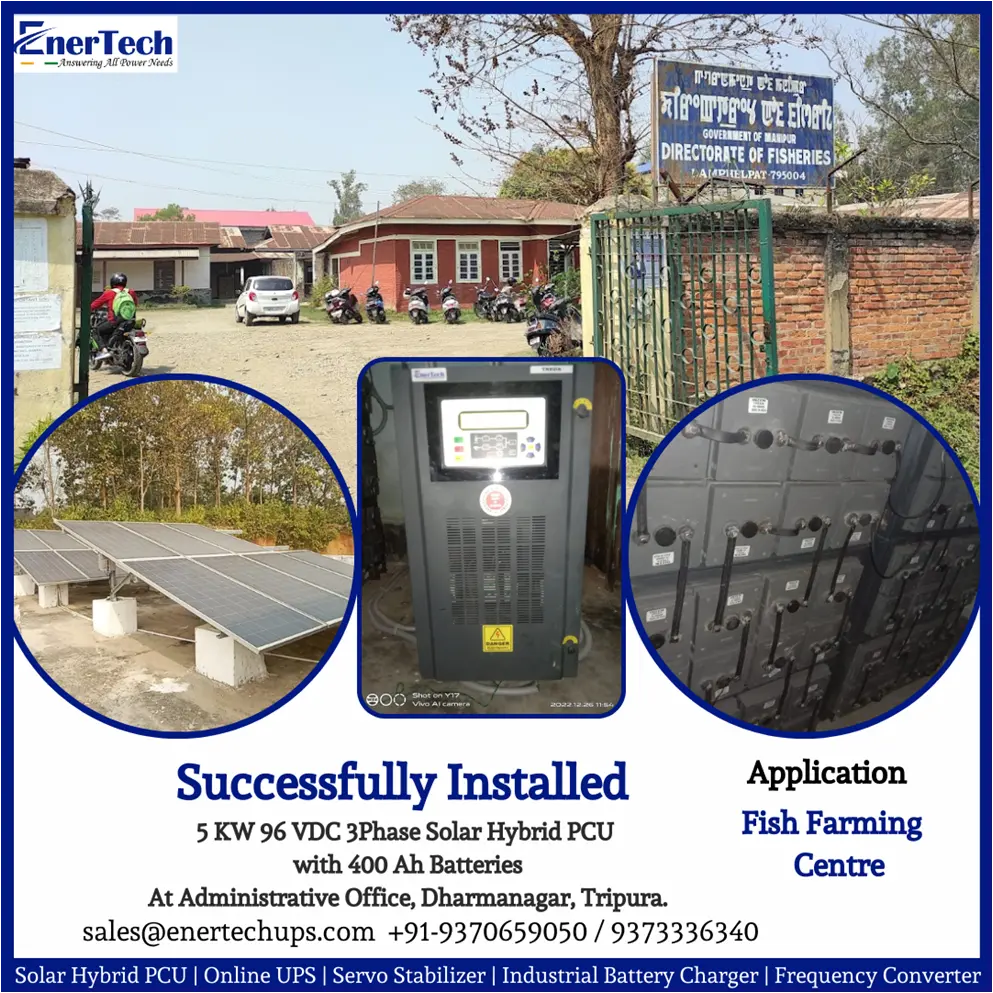

SUN MAGIC+/REeFI is a state of art PCU product by the EnerTech product basket with Global standards. This unit gives operational flexibility to its customers to enjoy the benefits of advanced monitoring and control features making it one of the best hybrid solar inverters in India.

We are MNRE approved hybrid inverter manufacturer and are a leading brand of solar inverter supplier in India. Grid power in the Indian subcontinent frequently suffers from voltage &/or frequency variations, grid outages, and voltage sag/ surges, which inhibits users from enjoying the benefits of solar grid-tied systems.

SUN MAGIC+/REeFI series has evolved to overcome the limitations and give the maximum possible yield to its users using DSP-based advanced control and monitoring features.

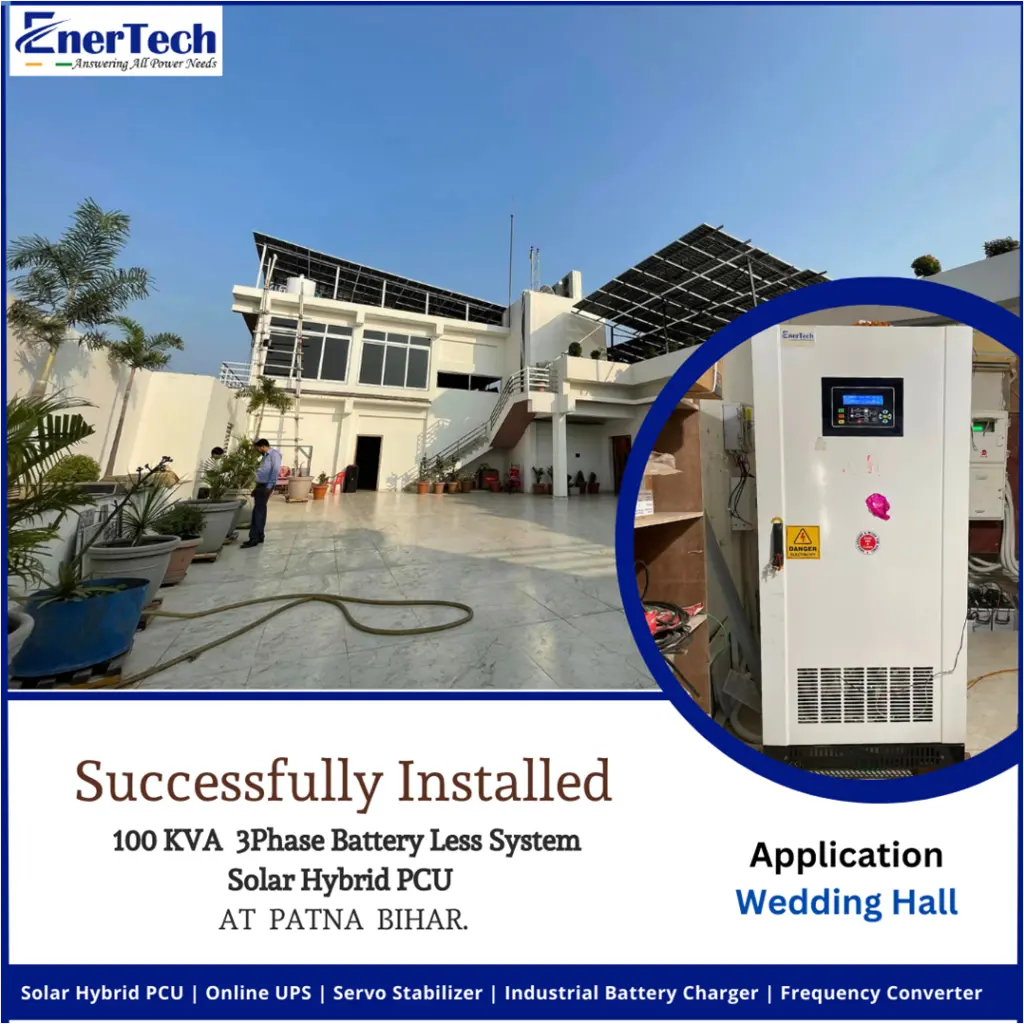

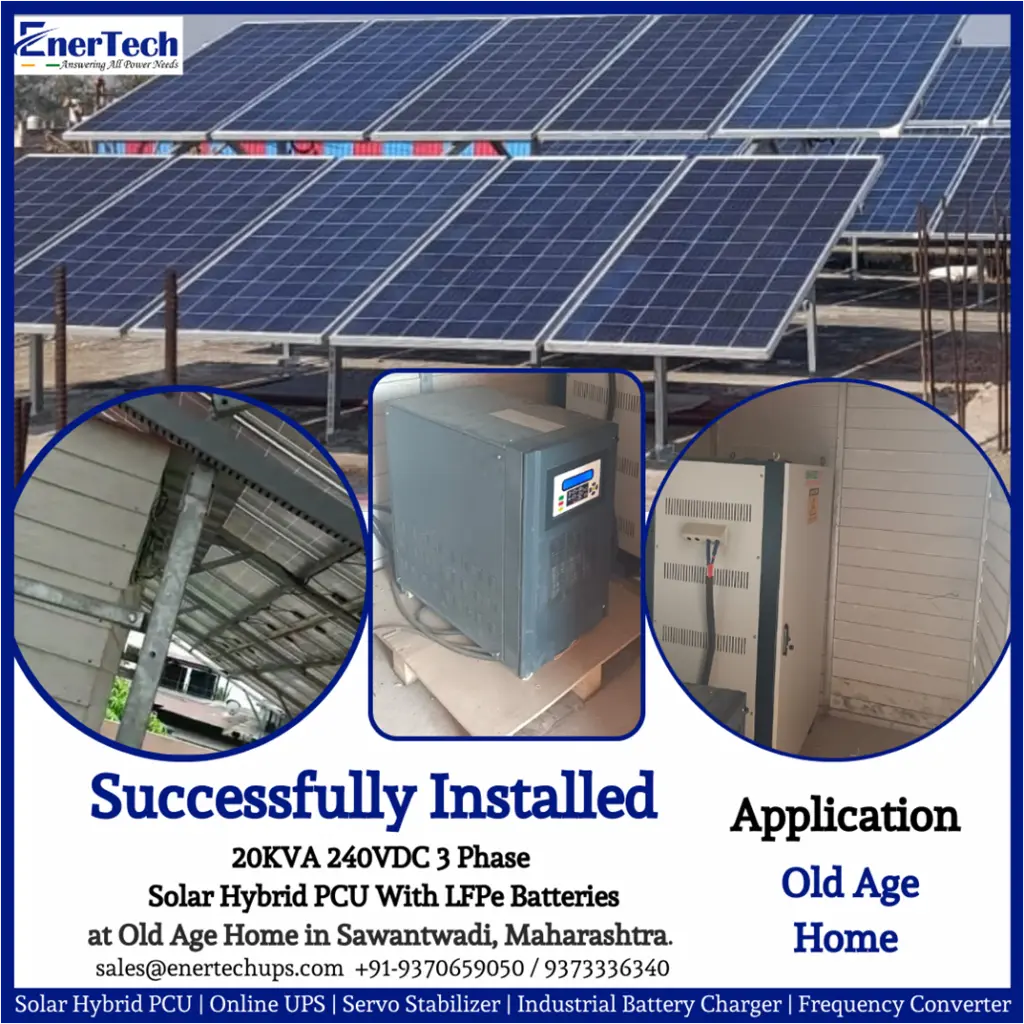

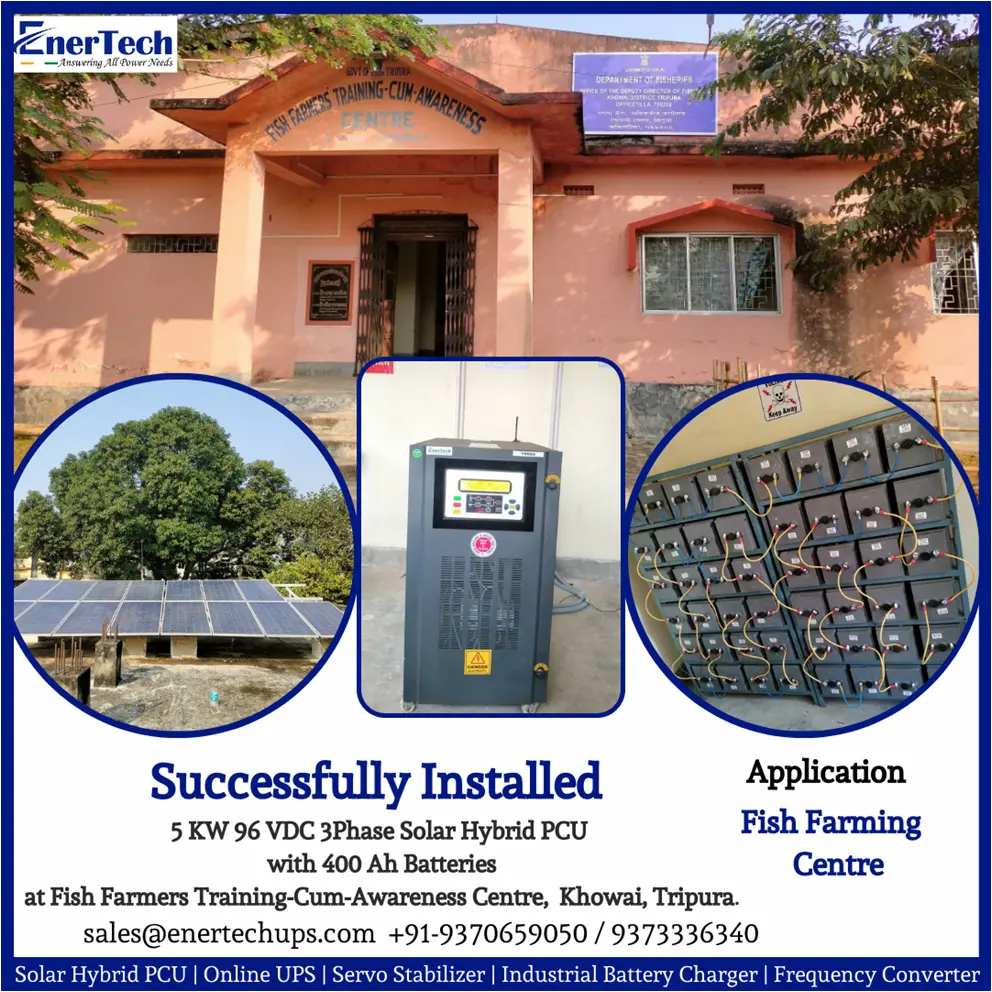

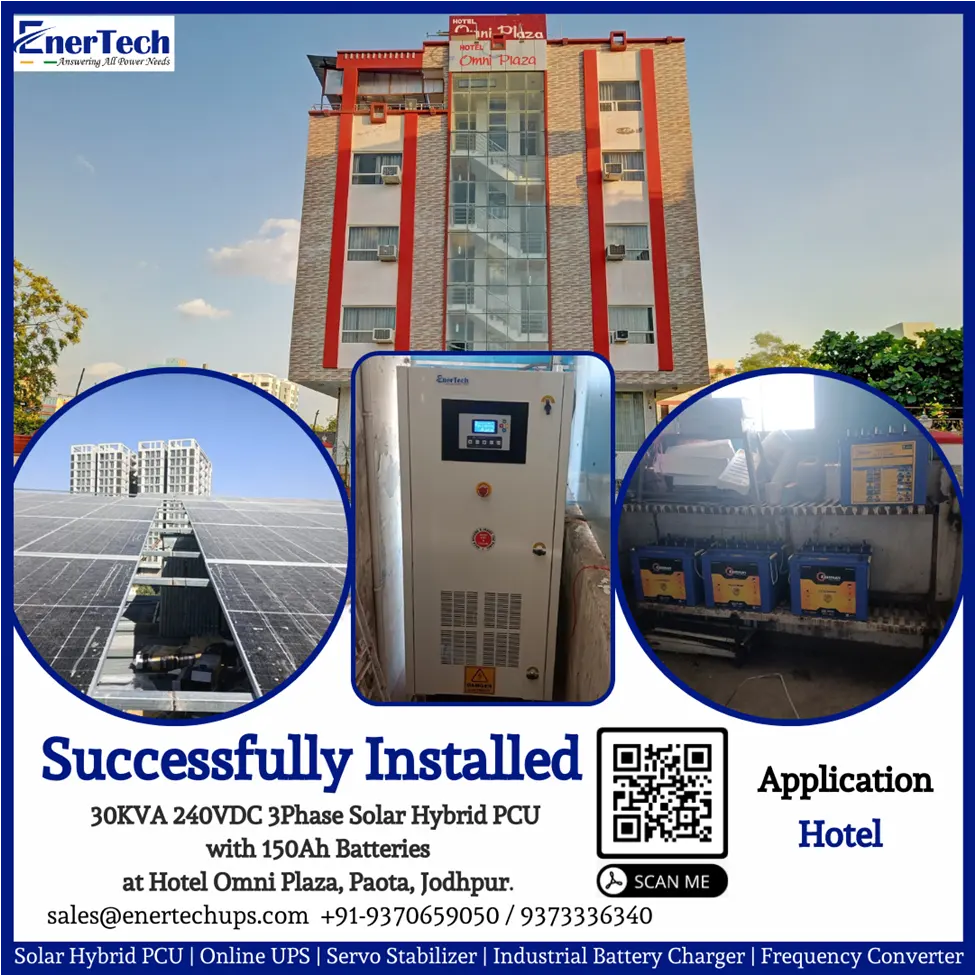

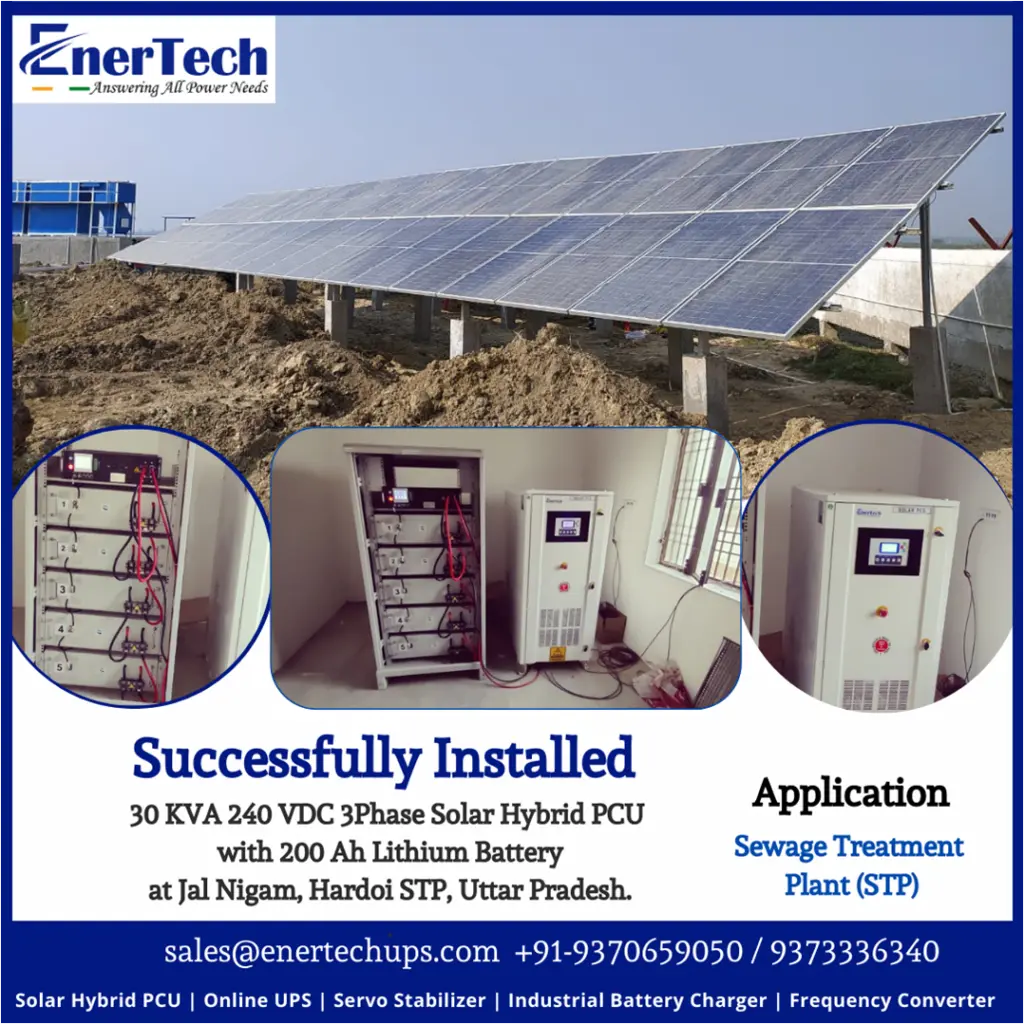

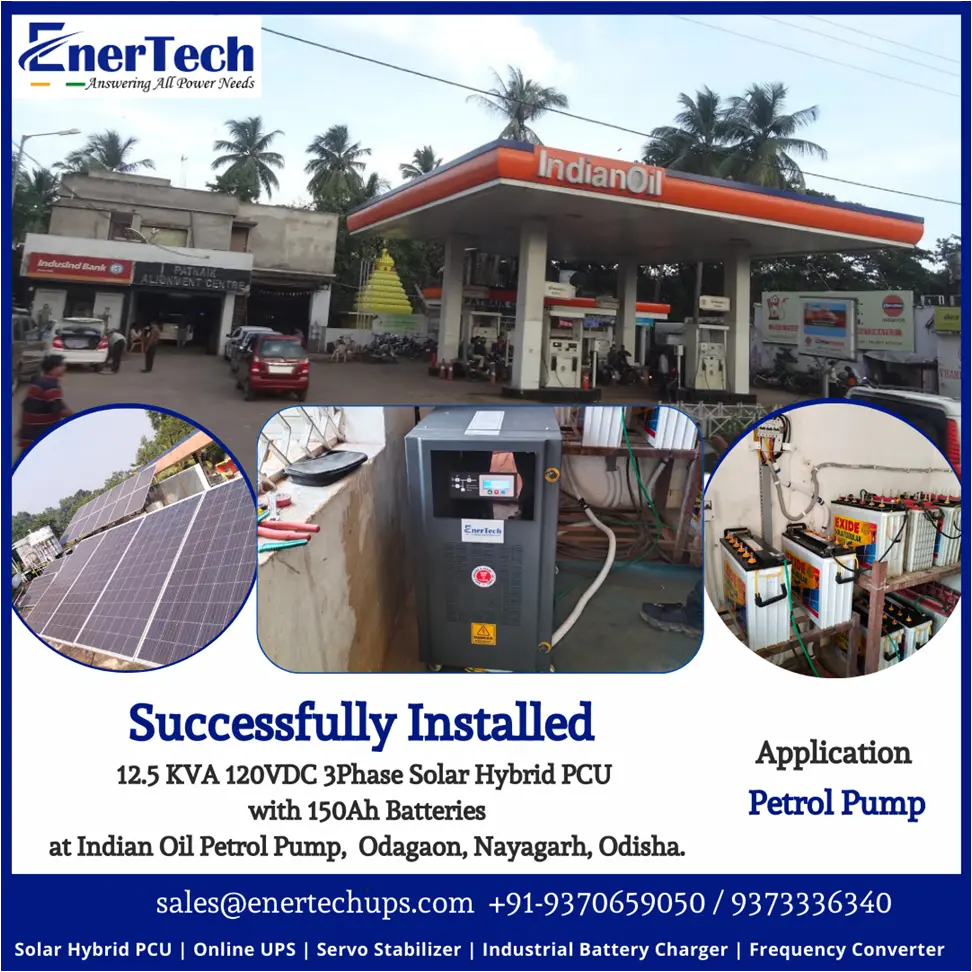

SUN MAGIC+/REeFI product range aims to cater to the rooftop requirement for commercial, Individual, and utility-scale solar plant requirements with 3Phase grid export + battery backup feature.

SUN MAGIC+/REeFI range of products is ideal for projects ranging from 10KWp to 100KWp array installations – 3Phase applications. SUN MAGIC+/REeFI hybrid solar inverter India product, packaged with optional data monitoring software, GSM-based wireless monitoring provides a perfect solution for power plant management large scale.

Features

  • Bidirectional solar PCU
  • Hybrid inverter (Solar / Grid / BATT)
  • Vector Modulated Inverter Control
  • Multiple DSP control operation
  • Battery Less operation compatible
  • Paralleling Compatibility
  • MPPT Based Solar Charger – 2 modes of operations
  • Higher Capacity PV connection option available
  • Multi Mode function: SGB/ SBG/GFM (selectable)
  • SBG Modes with Buffer level selection facility 25/50/75
  • GFM FEED mode feeds power to grid when grid available, feeds power to load when grid fails.
  • GFM levels are selectable 0/25/50/75/100
  • Unity power Factor for grid charging
  • Adjustable Grid Charging Current:
  • Vthd <3%
  • Changeover time less than 20ms
  • 40 X 4 LCD with backlight & Tactile Kay Pad Interface
  • Detailed Metering : Solar KW , Solar KWH
  • Fault logs : 9 recent faults
  • Auto fault reset for non critical faults
  • Optional Input : Pyranometer, Wind speed, Battery Temperature, Heat sink Temperature
  • Advanced Battery Management Feature
  • Temperature Compensated Charging
  • Generator compatible
  • Communication Port: RS232
  • GSM Based Remote Monitoring option

Specification

Grid Charger
Grid Voltage Sync Range 330V to 450V (±5V)
Grid Frequency Sync Range 50Hz ± 6%
Charger Peak Efficiency Higher than 90%
Max Grid Import Power Capacity Double of Inverter capacity dependent on battery charging current
Max Batt Amp (Charging) 5A to 200A selectable
Self Consumption Lower than 4%
Recommended DG/GRID Capacity Double of Inverter Capacity
Solar Charge Controller
Charge Controller Type MPPT
Charger Topology BUCK
No of MPPT Channels 1
Max Battery Amps during PV charging Full Capacity in Boost Mode / Current Control in Float Mode as per Battery AH
Battery type Supported LMLA, VRLA, SMF, Ni-Cd: Charging Profile can be configured as per the battery requirement
Peak Charging Efficiency Higher than 94% Up to 98%
Inverter
No of Phases/Connection Type 3Ph , 4 Wire- RYBN
Nominal Output Voltage 400V AC ±2%
Output Frequency 50Hz ± 0.5%
Voltage Regulation(Stand Alone) ±2%
Frequency Regulation(Stand Alone) ±0.5Hz
THD THD less than 4%
OUTPUT Waveform Pure Sine Wave
Galvanic Isolation In built Isolation Transformer at Inverter Output
Output Power Factor 0.8lagging
Peak Efficiency (Full Load) Higher than 75%
Overload capacity 125% FOR 60 SEC, 150% FOR 5 SEC / Can be customized
DG Compatibility Available
Auto Bypass feature Available
Grid Export Mode Available, Enable/Disable Options available
Anti Islanding Function Available, In Compliance with IEC 62116
Compatible IEC standards IEC -61683:1999- As per MNRE Requirement
Indication
LED Grid On, PV On, Grid Charger On, Load On Grid, Load On Battery , Fault
LCD Display Parameters INPUT GRP | Voltage | Current | Frequency
Configuration
Modes Available 5: SBG, SGB, GSB, GFM, INV
Battery Buffer Setting Selectable from 25%,50%,75%
MPPT Modes 2

Download

Download PDF

Request Quote

=
